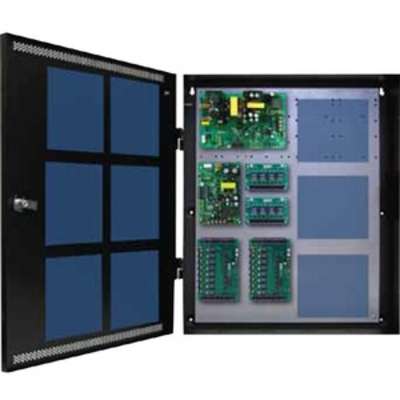

VCLASS unified power systems are engineered to house FlexPower® power modules alongside HID Vertx™ access hardware in one compact, secure system.
This unit is a 325W dual voltage 12V and 24V DC access power system.
C8 lock control module provide sixteen access control inputs capable of voltage or dry contact activation, and sixteen outputs programmable for failsafe / failsecure operation at either 12 or 24 VDC and controlled by the integrated fire alarm interface circuit on the FPO. D8 module provides sixteen fused outputs and each output is configurable for 12 or 24VDC operation.
VCLASS enclosures are painted steel with removable backplate and include lock, two (2) keys and tamper switch.
Compatibility
- Fire Alarm
- Intrusion
- Access Control
- CCTV
- Mass Notification
| Category | Specification |
|---|---|
| General Information | |
| Product Name | FPO75/250-2C82D8E4 |
| Manufacturer Part Number | FPO75/250-2C82D8E4 |
| Product Line | FlexPower |
| Product Model | FPO75/250-2C82D8E4V1 |
| Product Type | Power Supply |
| Technical Information | |
| Efficiency | 87% |
| Modular | Yes |
| Power Description | |
| Input Voltage | 120 V AC 230 V AC |
| Output Voltage | 12 V DC 24 V DC |
| Output Voltage Detail | 12 V DC @ 6 A 24 V DC @ 3 A 12 V DC @ 20 A 24 V DC @ 10 A |
| Output Current | 6 A 3 A 20 A 10 A |
| Output Power | 325 W |
| Physical Characteristics | |
| Form Factor | Enclosure |
| Height | 24″ |
| Width | 20″ |
| Depth | 4.5″ |
| Miscellaneous | |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Other Information | |
| Product Family | FlexPower |
