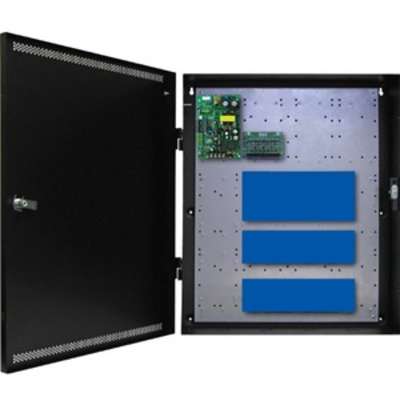

BCLASS™ Unified Power Solutions are engineered to house FlexPower® power modules alongside Brivo™ access hardware in one compact, secure solution. The FPO Power Supply / Battery Charger provides two power outputs user selectable for 12 or 24 VDC. One output provides continuous output power for system use, the second is resettable output power, activated when the fire alarm disconnect is initiated. For access or lock power, one D8P module provides eight class 2 power limited outputs rated at 2.5A per output, each individually programmable for constant output or FAI disconnect. BCLASS enclosures are painted steel with removable backplate and include lock, two (2) keys and tamper switch.
| Category | Specification |
|---|---|
| General Information | |
| Product Name | FPO75-D8PE4B |
| Product Line | FlexPower |
| Product Model | FPO75-D8PE4B |
| Product Type | Power Supply |
| Technical Information | |
| Efficiency | 87% |
| Power Description | |
| Input Voltage | 120 V AC, 230 V AC |
| Output Voltage | 12 V DC |
| Output Voltage Detail | 12 V DC @ 6 A |
| Output Current | 6 A |
| Output Power | 75 W |
| Physical Characteristics | |
| Form Factor | Enclosure |
| Height | 24″ |
| Width | 20″ |
| Depth | 4.5″ |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Other Information | |
| Product Family | FlexPower |
