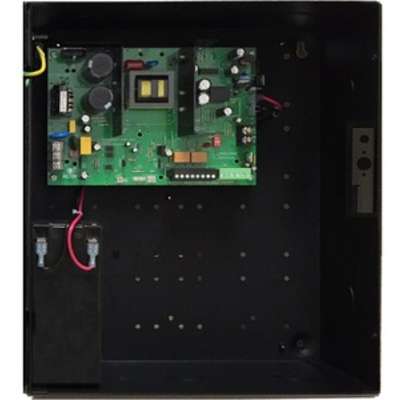

Vantage smart power supply/chargers offer unique performance and value with these standard features:
- Built in Fire Alarm disconnect on a per output basis
- Low battery cutoff protects batteries from deep discharge
- Dedicated fast charger prolongs battery life
- Enhanced surge immunity for input/output protection
- Locksafe tight regulation provides longterm lock protection
- OutSmart Visual LED notification (12V/Green, 24V/Blue)
- Dual outputs main and auxiliary rated 1.5A continuous
- Network ready with optional Netlink module
| Category | Specification |
|---|---|
| General Information | |
| Product Name | FPV6-E1 |
| Manufacturer Part Number | FPV6-E1 |
| Product Series | FPV6 |
| Product Type | Power Supply |
| Technical Information | |
| Efficiency | 85% |
| Modular | Yes |
| Power Description | |
| Output Voltage | 24 V DC, 12 V DC |
| Output Voltage Detail | 24 V DC @ 6 A, 12 V DC @ 6 A |
| Output Current | 6 A |
| Physical Characteristics | |
| Form Factor | Enclosure |
| Height | 14″ |
| Width | 12″ |
| Depth | 4.5″ |
| Miscellaneous | |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Other Information | |
| Product Family | FPV6 |
