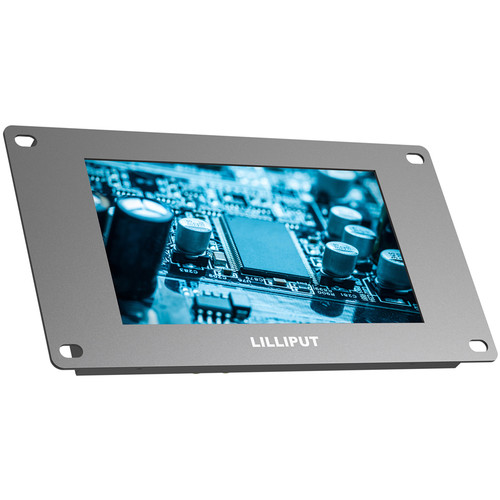

Lilliput TK700-NP/C 7″ Class WVGA LCD Monitor

Add to Wishlist
Key Features
  • WVGA (800 x 480) Native Resolution
  • 1000 nits Brightness
  • 500:1 Contrast Ratio
  • HDMI, VGA, 2x RCA Composite Video Inputs
  • 1/8″ Headphone Output
  • Built-In Speaker

1,099.00 د.إ

Add to Wishlist

Add a high-brightness display to your system with the Lilliput TK700-NP/C 7″ Class WVGA LCD Monitor. It has a native resolution of WVGA 800 x 480 with support for signals up to 4K at 30 fps. With a brightness rating of 1000 nits and a contrast ratio of 500:1, the display is designed to appear clear and vibrant in most installation settings. The monitor is equipped with HDMI, VGA, and two RCA composite video inputs, 1/8″ audio input, 1/8″ headphone output, and a built-in speaker.

High-Brightness Display
The TK700-NP/C features 800 x 480 resolution, 1000 nits of brightness, and a 500:1 contrast ratio for use in various environments, such as human-machine interfaces, entertainment, retail, supermarkets, malls, CCTV monitoring, control machines, and more.
Interface Options
The display features HDMI, VGA, and two RCA composite video input signals to meet the needs of various professional display applications.
Metal Housing
The metal housing helps protect the display from damage, extending its life.
Open Frame
The open frame design allows for various mounting options, including rear, wall, desktop, and roof mounting.
SKU: TK700-NP/C Category: Tag:
Key Specs
Display Size
7″
Native Resolution
800 x 480
Maximum Brightness
1000 nits / cd/m2
Inputs
Bottom:
1x HDMI
1x DE-15/DB-15 (VGA)
2x RCA (Composite)
1x 1/8″ / 3.5 mm
Outputs
Bottom:
1x 1/8″ / 3.5 mm (Analog Audio)
USB I/O
Bottom:
1x Mini-USB (Unspecified Version) (Touchscreen Control)
1x Micro-USB (Unspecified Version) (Service)
Ethernet I/O
No
Built-In Speakers
Yes, 1 W
Media Card Reader
No
Display
Display Size
7″
Panel Type
LCD
Aspect Ratio
15:9
Native Resolution
800 x 480
Maximum Brightness
1000 nits / cd/m2
Contrast Ratio
500:1
Refresh Rate
60 Hz
Viewing Angle (H x V)
140 x 120°
Video
TV Tuner
No
Connectivity
Inputs
Bottom:
1x HDMI
1x DE-15/DB-15 (VGA)
2x RCA (Composite)
1x 1/8″ / 3.5 mm
Outputs
Bottom:
1x 1/8″ / 3.5 mm (Analog Audio)
USB I/O
Bottom:
1x Mini-USB (Unspecified Version) (Touchscreen Control)
1x Micro-USB (Unspecified Version) (Service)
Ethernet I/O
No
Speaker
Built-In Speakers
Yes, 1 W
Hardware
Media Card Reader
No
Environmental
Operating Temperature
12 to 92°F / -20 to 60°C
Storage Temperature
-22 to 158°F / -30 to 70°C
Electrical
Power Consumption
Operational: < 8.5 W
DC Input Power
10 to 24 VDC
General
Material of Construction
Metal
Dimensions
11 x 7.7 x 1.4″ / 279.6 x 195.5 x 36.1 mm
Weight
2.09 lb / 950 g
Packaging Info
Package Weight
3.78 lb
Box Dimensions (LxWxH)
10.6 x 6.6 x 4.6″
