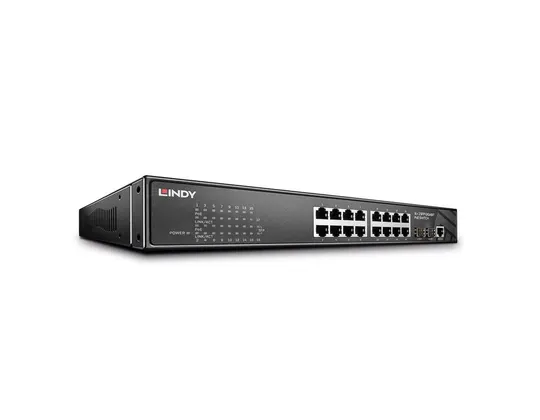

Lindy 16 Port + 2 SFP Gigabit Managed Switch PoE


16 Port + 2 SFP Gigabit Managed Switch PoE

AED1,199.00

Highlights

Add 16 Gigabit ports to a network infrastructure using a convenient fibre uplink via 2 SFP+ slots, while providing power to compatible devices using PoE Professional Layer 2 management features for superior network traffic optimisation and control Features Jumbo Frame support and IGMP snooping for effective AV Over IP installation integration DDM for consistent critical information monitoring of the transmitted and received signals 2 Year Warranty This advanced Lindy 16 Port Gigabit switch with PoE provides a high performance, intelligent expansion to a distributed IP network, while utilising dual SFP+ module slots for longer distance uplink, ideal for larger scale or multi-building installations. All RJ-45 ports are PoE IEEE 802.3at/af compliant providing up to 30W of power to compatible devices, simplifying the whole installation. Supporting full Layer 2 management, traffic can be separated and managed effectively via advanced VLAN features, alongside QoS for independent traffic prioritisation and IGMP Snooping for optimised multicast stream listening, while the user can efficiently control the network via Web Gui, Telnet or command line. Featuring virtual stacking, this switch can also be integrated alongside multiple switches for even larger scale installations, while controlled and managed as a single switch. Optical Digital Diagnostic Monitoring support also ensures the user is provided with consistent critical information regarding the status of both the transmitter and received signals, ensuring faults can be identified and resolved with minimum disruption to the system.

SKU: 25048 Category: Tag:
Feature Specification
Switch type Managed
Quality of Service (QoS) support Y
Web-based management Y
Configuring Location Settings (CLI) Y
System event log Y
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP module slots quantity 2
Console port RS-232
Mini-SAS stacking port data rate (max) 36 Gbit/s
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support N
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring Y
Full duplex Y
Flow control support Y
Link aggregation Y
Broadcast storm control Y
Auto MDI/MDI-X Y
Spanning tree protocol Y
Auto-negotiation Y
VLAN support Y
Virtual LAN features Protocol-based VLAN, Voice VLAN
Fiber ethernet cabling technology 1000BASE‑LX, 1000BASE‑SX
MAC address table 8000 entries
Switching capacity 36 Gbit/s
Forwarding rate 14.88 Mpps
Jumbo frames support Y
Jumbo frames 9600
Packet buffer memory 4 MB
DHCP features DHCP relay, DHCP server, DHCP snooping
IGMP snooping Y
Security algorithms SSH-2, SSL/TLS
MAC address filtering Y
Authentication Port-based authentication
Rack mounting Y
Stackable Y
Product colour Black
Housing material Metal
LED indicators Activity, Link, PoE, Power
Certification CE, UKCA, FCC, RoHS 2.0, REACH
Firmware upgradeable Y
Harmonized System (HS) code 85176990
Power source AC
AC input voltage 100 – 240 V
AC input frequency 50 Hz
Power consumption (typical) 15 W
Power over Ethernet (PoE) Y
Power over Ethernet (PoE) ports quantity 16
Power over Ethernet (PoE) power per port 30 W
Total Power over Ethernet (PoE) budget 235 W
Operating temperature (T-T) 0 – 45 °C
Storage temperature (T-T) -20 – 80 °C
Operating relative humidity (H-H) 5 – 90%
Width 330 mm
Depth 210 mm
Height 44 mm
Weight 2.52 kg
Cables included AC
Quick start guide Y
User guide Y
Manual Y
Rack mount kit Y
