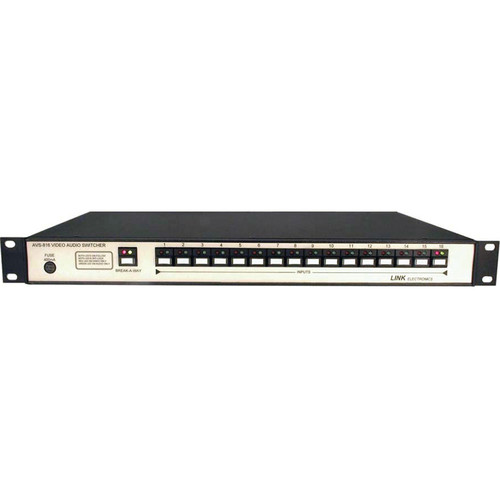

Link Electronics AVS-816/VA Analog Video Switcher

Add to Wishlist
  • 16×2 Video Switching
  • Modular and Upgradeable
  • Multiple Control Options
  • Rackmountable
  • Control Software

AED10,999.00

Add to Wishlist

The AVS-816/VA Analog Video Switcher from Link Electronics is an analog-video only switcher with (16) inputs and (2) outputs. It features a wide bandwidth vertical interval designed for use in professional video applications. Its modular design allows for a separate audio module to be added for enhanced functionality.

The unit can be controlled via a serial data feed of RS-232 or RS-422/485, as well as with Windows-based control software or a separately available remote control panel. It is designed for placement in 1U of a standard 19″ equipment rack.

This unit offers 16×2 video switching
The device can be controlled via RS-232 or RS-422/485
It features wide bandwidth vertical interval switching
This unit occupies 1U in a standard 19″ equipment rack
It can be managed with Windows-based software
SKU: AVS-816/VA Category: Tag:
Inputs
Number: Sixteen (16)
Impedance: 75 Ohms +/-1%
Configuration: Single-ended
Level: 1vpp +/-3dB
Outputs
Number: Two (2)
Level: Unity Gain +/-1%
Impedance: 75 Ohms +/-1%
Frequency Response:
+/-0.5dB to 15MHz
3dB to 3OMHz
Differential Phase: <0.1E
Differential Gain: <0.1%
Tilt: <0.5%
S/N Ratio: >70dB
Propagation Delay: 161lnS +/-0.2nS
Crosstalk: +/->6OdB, Worst Case
Reference
Standard: Analog Blackburst
Number: One (1)
Power
Input: 120/240VAC +/-10%, 50/60Hz
Power: 8VAR
Dimensions
1.75 x 19 x 8.7″ (4.45 x 48.26 x 22.1cm)
Weight
6.8 lbs (3.08kg)
Packaging Info
Package Weight
2 lb
Box Dimensions (LxWxH)
21 x 20 x 6″
