Link Electronics IEC-708 8×1 Composite Video Switcher – Vertical Interval, Lighted Push Buttons, BNC

Add to Wishlist

AED4,799.00

Add to Wishlist

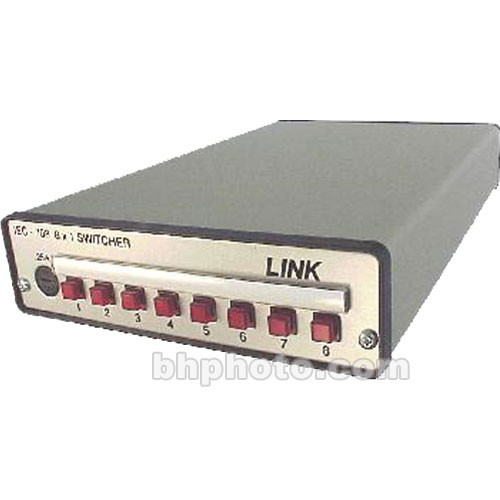

The Link Electroncs IEC-708 is an 8×1 vertical interval, composite video switcher. This unit features momentary push buttons for selection and a compact size.

Compact
Measuring less than 6″ wide, this unit will fit on desktops or small studio spaces.
Vertical Interval
Switching is glitch free with vertical interval; sync is derived from the video at the output stage of this switcher.
Dual Outputs
Dual outputs allow for monitoring or routing the output signal to two separate targets.
Rackmountable
Three IEC-708 units can be mounted side by side in the PRT-700 rack tray.
SKU: IEC-708 Category: Tag:
Input
Composite Video x8, 1 Vpp @ 75 ohms, on BNC connectors
Output
Composite Video x2, 1 Vpp @ 75 ohms, on a BNC connector
Switch Type
Vertical Interval
Utilizing Digital Switching Logic
Video Bandwidth
30 MHz
Video Signal-to-Noise Ratio
60 dB
Differential Phase
0.1°
Differential Gain
0.5%
Control
Front Panel lighted Momentary buttons for Input Selection
Power Source
115 VAC @ 60 Hz
Dimensions
5.5 x 9.25 x 1″
14 x 23.5 x 2.5cm
Weight
1 lb
454 grams
Packaging Info
Package Weight
2 lb
Box Dimensions (LxWxH)
10.2 x 6.1 x 2.1″
