Litepanels Caliber LED Fresnel 3-Light Kit with Soft Case


Key Features
  • 3 x Caliber Daylight Fresnel Fixtures
  • 3 x PIXI Tabletop Tripods
  • 3 x Gel Sets, 3 x Color Frames
  • 3 x Four-way Barndoors
  • 3 x International Power Supply
  • 1 x Compact Light Stand
  • 1 x Ball Head Shoe Mount
  • 1x Soft Case: Customizable Compartments
  • 15-73 Degree Beam Angle, Dimming: 0-100%
  • Weighs 1.3 lb, Measures 8.8 x 2.7 x 3.3″

AED8,199.00

Litepanels CaliberĀ Overview

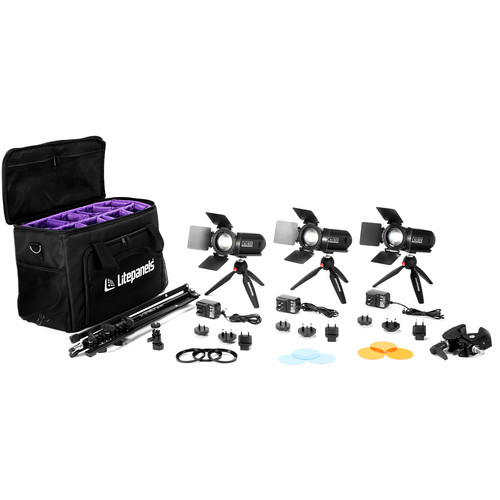

TheĀ Caliber LED Fresnel 3-Light Kit with Soft CaseĀ fromĀ LitepanelsĀ is a lightweight versatile and highly controllable lighting solution for photographers and videographers on location or on set. The kit includes 3 Caliber LED Fresnel lights, each with 4-way barndoors, a PIXI tabletop tripod, color frame, gel set and international AC power supply. The kit also includes a compact light stand, ball head shoe mount and a soft case with customizable interior compartments.

Ideal for travel and location work, the 2″ Caliber Fresnel measures 8.8 x 3 x 3 and weighs just 1.3 lb. yet its daylight-balanced output is the equivalent of a 150W tungsten fixture while consuming just 17W of current. Versatility and control are key to the Caliber’s design. Its 0-100% dimming range and exceptionally wide 17-73 degree spot-to-flood beam angle make it highly useful for everything from wide, soft wash lighting to sharp-shadow sunlight effects or hairlighting. The included 4-way barndoors allow further refinement and precise placement of the unit’s beam. The light is ready for worldwide use via its included 100-240 VAC power supply but it can also run on 6 easily-sourced AA batteries when mains power is unavailable.

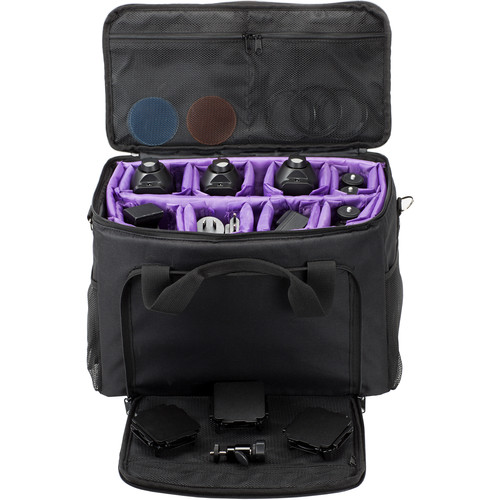

The lights and accessories store and travel in a soft-sided 16.5 x 10.5 x 12″ case with user- adjustable interior compartments that weighs just 13 lb when filled with the kit’s components.

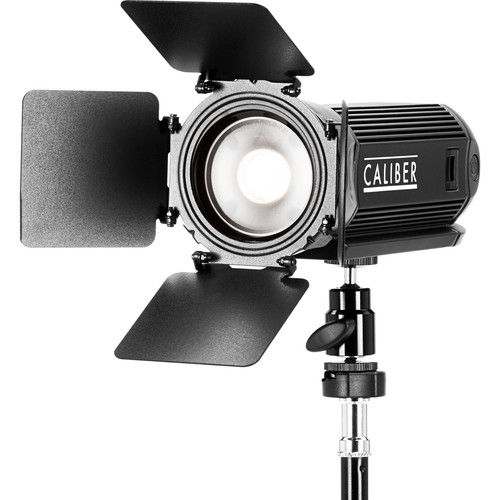

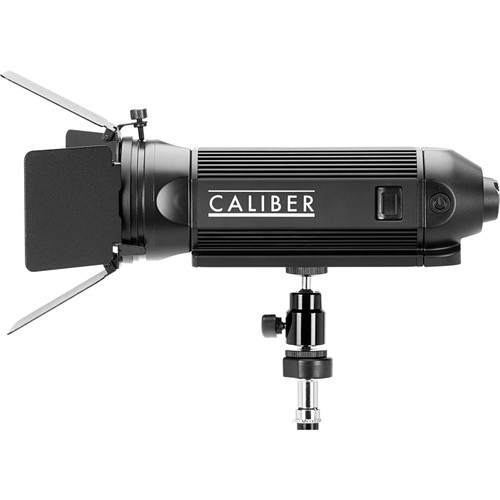

Litepanels Caliber LED Light

TheĀ Caliber LED Fresnel LightĀ fromĀ LitepanelsĀ is a lightweight versatile and highly controllable lighting solution for photographers and videographers on location or on set. The light includes a 4-way barndoor set, a PIXI tabletop tripod, color frame, gel set, and international AC power supply.

Ideal for travel and location work, the 2″ Caliber Fresnel measures 8.8 x 3 x 3″ and weighs just 1.3 lb., yet its daylight-balanced output is the equivalent of a 150W tungsten fixture while consuming just 17W of current. Versatility and control are key to the Caliber’s design. Its 0-100% dimming range and exceptionally wide 17-73 degree spot-to-flood beam angle make it highly useful for everything from wide, soft wash lighting to sharp-shadow sunlight effects or hairlighting. The included 4-way barndoors allow further refinement and precise placement of the unit’s beam. The light is ready for worldwide use via its included 100-240 VAC power supply, but it can also run on 6 easily-sourced AA batteries when mains power is unavailable.

Caliber Advantages
  • True Fresnel fixture that produces highly controllable illumination
  • Flicker-free at any frame rate or shutter angle
  • Ultra-smooth dimming from 0 – 100%, with no noticeable color shift throughout the entire range
  • Low power draw means the portable fixtures can run anywhere light is needed, on AA batteries or via AC (fixture is 2x brighter when run on AC)
  • Low 17W power draw with output comparable to a 150W tungsten fixture
  • Durable rugged aluminum chassis design

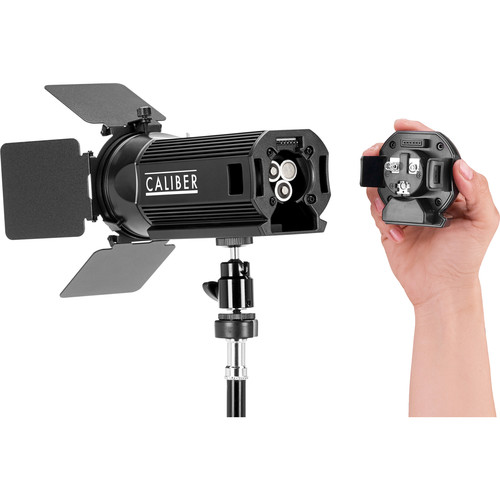

  • Serve as a battery compartment for mobile lighting
  • Provides efficient thermal management to ensure color quality and long life
  • Premium selected high CRI/TLCI rated
Photometrics with AC Power
Spot: 15 Degrees
2,097 lux / 195 fc @ 6.0′ (1.8 m) with a beam diameter of 1.6′ (0.5 m) and field diameter of 2.6′ (0.8 m)
932 lux / 87 fc @ 9.0′ (2.7 m) with a beam diameter of 2.4′ (0.7 m) and field diameter of 4.0′ (1.2 m)
524 lux / 49 fc @ 12′ (3.7 m) with a beam diameter of 3.2′ (1.0 m) and field diameter of 5.3′ (1.6 m)
Flood: 73 Degrees
225 lux / 21 fc @ 6.0′ (1.8 m) with a beam diameter of 9.0′ (2.7 m) and field diameter of 12.5′ (3.8 m)
100 lux / 9.0 fc @ 9.0′ (2.7 m) with a beam diameter of 13.3′ (4.1 m) and field diameter of 18.7′ (5.7 m)
56 lux / 5.0 fc @ 12′ (3.7 m) with a beam diameter of 17.8′ (5.4 m) and field diameter of 25′ (7.6 m)
Manfrotto PIXI Mini Table Top Tripod (Black)

The blackĀ PIXI Mini Table Top TripodĀ fromĀ ManfrottoĀ doubles as a tabletop tripod and a handheld grip support for a DSLR, point and shoot, or compact camcorder. The legs are rounded on their outer side, so the closed tripod provides a comfortable hand grip. When open, the tripod and head have a maximum height of 5.31″. Rubber feet prevent slipping and protect delicate surfaces.

Fabricated from stainless steel and black Adapto polymer, the PIXI supports up to 2.2 pounds while weighing only 6.7 ounces. Its built-in ball head has a 1/4″-20 camera screw and a unique design that allows adjustments and locking with a single push button. Besides cameras, the PIXI is also ideal for iPhones outfitted with the optional Manfrotto KLYP, and other small devices.

DSLR Compatibility
The PIXI has been developed for entry level DSLRs fitting these basic requirements:

  • Body: maximum weight of 1.4 lb
  • Focal length: maximum 85mm (standard non-professional lens)
  • Total equipment payload: maximum 2.2 lb
SKU: 909-1001 Category: Tag:
Key Specs
Item Type
1x LED Fresnel
Included Light Modifier
1x Barndoors
Included Storage Case
No
Photometrics
Not Specified by Manufacturer
Color Temperature
5600K
Color Modes
Daylight
Color Accuracy Standard
CRI 93
Dimming
Built-In Dimmer
Front Accessory Mount
Proprietary
Power Source
AC to DC Adapter (Included)
Battery (Not Included)
Battery
6x AA (Not Included)
Input Power
12 VDC
120 to 240 VAC, 50 / 60 Hz
Power Consumption
17 W
Fixture Mounting
1x 1/4″-20 Female Thread
Light Fixture
Item Type
1x LED Fresnel
Included Light Modifier
1x Barndoors
Included Filters
Color
Included Storage Case
No
Photometrics
Not Specified by Manufacturer
Color Temperature
5600K
Color Modes
Daylight
Color Accuracy Standard
CRI 93
Dimming
Built-In Dimmer
Cooling System
No
Beam Angle
15 to 73°
Built-In Flash
No
Preprogrammed Effects
No
Umbrella Mount
No
Front Accessory Mount
Proprietary
Lens
Lens Type
Fresnel
Lens Diameter
2″ / 5Ā cm
Power & I/O
Power Source
AC to DC Adapter (Included)
Battery (Not Included)
Inputs/Outputs
1x Barrel / Coax Power Input
Battery
6x AA (Not Included)
Input Power
12 VDC
120 to 240 VAC, 50 / 60 Hz
Included Adapter / Cable
1x USA Type-A/B to Unspecified AC to DC Adapter
Inline Switch
No
Power Pass-Thru
No
Power Consumption
17 W
Mounting
Included Light Stand / Mount
1x Tabletop Stand with Ball Head with 1/4″-20 Male Screw (Folds to Handle)
 • Height:Ā 5.3″ / 13.5Ā cm
 • Folded Length:Ā 7.3″ / 18.5Ā cm
Fixture Mounting
1x 1/4″-20 Female Thread
General
Display
No
Environmental Resistance
Dust-Resistant (IP20)
Dimensions
Ćø: 2″ / Ćø: 5.08Ā cm (Lens)
9.6 x 3 x 3″ / 24.4 x 7.6 x 7.6Ā cm (Fixture in Flood Mode)
8.8 x 3 x 3″ / 22.4 x 7.6 x 7.6Ā cm (Fixture in Spot Mode)
Weight
1.3Ā lb / 0.59Ā kg
Packaging Info
Package Weight
3.25 lb
Box Dimensions (LxWxH)
17.2 x 10.7 x 3.2″
