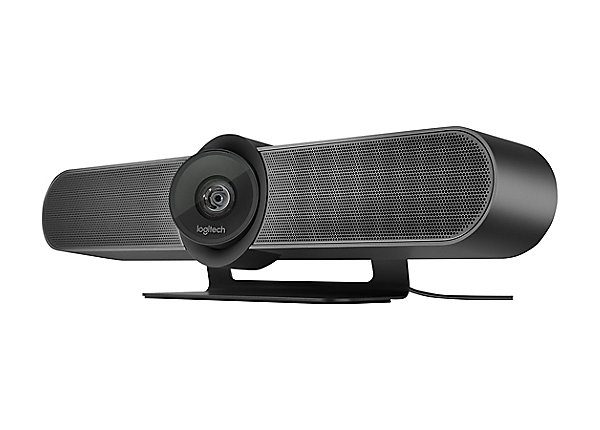

Logitech MeetUp All-In-One 4K ConferenceCam with 120° FOV Lens 960-001101

Main unit

• Height x Width x Depth:
• 4.1 in (104 mm) x 15.75 in (400 mm) x 3.35 in (85 mm)

• Weight: 2.3 lbs (1.04 kg)

Remote Control

• Height x Width x Depth:
• 3.25 in (83 mm) x 3.25 in (83 mm) x 0.375 in (10 mm)

• • • Windows^® 7, Windows 8.1, or Windows 10
      macOS^® 10.10 or higher
      USB 2.0 port (USB 3.0 port and cable required for 4K video)

RIGHTSENSE TECHNOLOGIES

• • • RightLight
      Low-light compensation
      Video noise reduction
      Low-light saturation optimization
  • • RightSight
      Human figure detection
      Auto-frame participants at meeting start
      Auto-frame participants on-demand
      Auto-reframe when participants enter, leave, or change positions
  • • RightSound
      Machine learning AI trained to distinguish human speech from other sounds
      AEC (Acoustic Echo Cancellation)
      VAD (Voice Activity Detector)
      Background noise suppression
      Auto-level loud and soft voices
      Peak-limiting algorithm eliminates even momentary speaker clipping to prevent distortion
      Anti-vibration enclosure

COMPATIBILITY AND INTEGRATIONS

• • Plug-and-play USB connectivity
    Certified for Skype^™ for Business and ready for Teams
    Zoom^™ Certified
    Fuze^™ Certified
    Certified for Google Hangouts Meet Hardware
    Microsoft Cortana^®
    Cisco Jabber^®
    Compatible with BlueJeans, BroadSoft^™, GoToMeeting^™, Vidyo^™, and other video conferencing, recording, and broadcasting applications that support USB cameras

CAMERA

• Custom Logitech lens with 5x HD zoom and motorized pan (+/- 25°) and tilt (+/- 15°)
  Field of view: Diagonal: 120°, Horizontal: 113°, Vertical: 80.7°
  Total Room Coverage (field of view + pan and tilt): 163° wide x 110° tall
  3 camera position presets
  RightSight auto-framing (requires Windows 10 64-bit or macOS 10.14 or higher)

Video performance:

• • 4K Ultra HD video calling (up to 3840 x 2160 pixels @ 30 fps with customer-supplied USB 3.0 cable)
  • 1080p Full HD video calling (up to 1920 x 1080 pixels @ 30 fps)
  • 720p HD video calling (up to 1280 x 720 pixels @ 30 fps)

MICROPHONE

• Integrated microphone with 3 beamforming elements
  Pickup Range:
  • MeetUp: 4 meters (13.1 feet)
  • With optional Expansion Mic: 5 meters (16.4 feet)

  Sensitivity: -27dB
  Microphone frequency response: 90Hz – 16kHz for full voice reproduction and high intelligibility without noise
  Beamforming performance: Factory-paired, very low distortion broadside beamforming algorithm steers the microphones directly at the talker for the best voice pickup and noise reduction
  AEC (Acoustic echo cancellation)
  VAD (Voice activity detector)
  Microphone background noise suppression
  Microphone date rate: 32 kHz sampling rate
  Recommended # of participants: 6
  Recommended # of participants with expansion mic: 8

SPEAKER

• Volume adjustable to 95 dB SPL at 1/2 meter peak
  Speaker sensitivity 86.5+/-3dB SPL at 1/2 meter
  Distortion: 200 Hz – 300Hz < 3%, 3000 Hz -10KHz < 1%
  Patent-pending anti-vibration enclosure improves voice clarity while limiting sound transmission to adjacent spaces

GENERAL

• Bluetooth^® wireless technology
  RF remote control
  Integrated table/wall mount; optional TV mount available
  Kensington security slot

CALIFORNIA RESIDENTS

• WARNING: Proposition 65 warning
  READ MORE ON PROP 65 >

• MeetUp ConferenceCam
  Remote control
  USB cable: 16 ft (5 m)
  Power supply
  Wall mount and hardware
  User documentation
