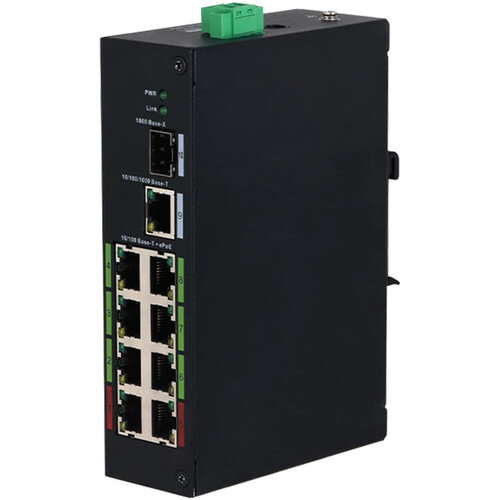

Lorex AEX8-2 8-Port 10/100 Mb/s PoE++ Compliant Unmanaged Industrial Switch

Add to Wishlist
Key Features
  • 2 x 100Mb Ethernet PoE++ Ports (90W)
  • 6 x 100Mb Ethernet PoE+ Ports (30W)
  • 1 x Gigabit Ethernet Port
  • 1 x Gigabit SFP Port
  • 8.8 Gb/s Switching Capacity
  • 5.36 Mpps Forwarding Rate
  • 120W Power Budget
  • Rack & DIN Rail Mountable
  • Passive Cooling
  • Up to 2624′ Range

AED999.00

Add to Wishlist

Lorex AEX8-2 Overview

Extend and simplify your surveillance system connections with the AEX8-2 8-Port 10/100 Mb/s PoE++ Compliant Unmanaged Industrial Switch from Lorex. This rugged layer 2 switch features six 30W PoE+ ports and two 90W PoE++ ports with a total budget of 120W, and allows you to connect your separately purchased NVR up to 2624′ to your IP camera at 10 Mb/s data speeds.

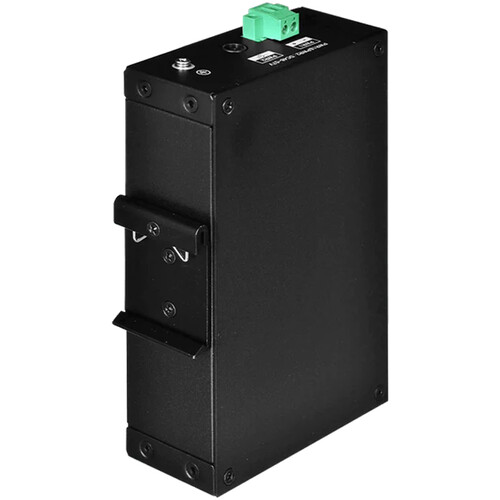

One RJ45 port is available alongside an SFP fiber slot for Gigabit speed uplinks to compatible devices. This switch also features a durable design that can withstand between -22 to 149°F temperatures while supporting an 8.8 Gb/s switching capacity and 5.36 Mpps forwarding rate. It may be mounted onto a rack or DIN rail with a terminal block power connection, making it ideal for industrial environments. An AC power adapter is included.

tdycdtf2fx4
The metal chassis efficiently dissipates heat without disturbing the environment.
Static Protection
Air discharge: 8 kV
Contact discharge: 6 kV
Lightning Protection
Common mode: 4 kV
Differential mode: 2 kV
SKU: AEX8-2 Category: Tag:
Key Specs

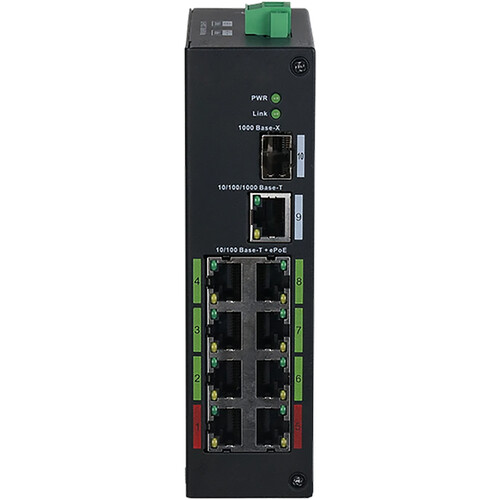

Inputs/Outputs
2x RJ45 10/100 Mb/s Ethernet PoE++ (100 W, 802.3bt Type 4)
6x RJ45 10/100 Mb/s Ethernet PoE+ (30 W, 802.3at)
1x RJ45 Gigabit Ethernet
1x SFP Gigabit Ethernet
PoE Power Budget
120 W
Interfaces
Inputs/Outputs
2x RJ45 10/100 Mb/s Ethernet PoE++ (100 W, 802.3bt Type 4)
6x RJ45 10/100 Mb/s Ethernet PoE+ (30 W, 802.3at)
1x RJ45 Gigabit Ethernet
1x SFP Gigabit Ethernet
Stackable
No
Protocols
Layer Services Supported
Layer 2
Supported Protocols
Auto-MDIX/MDI
Jumbo Frames Support
9216 Bytes
MAC Address Table Size
8K
Standards
Supported IEEE Standards
802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W), 802.3bt Type 4 (PoE++ 100 W)
Performance
Forwarding Rate
5.36 Mpps
Switching Bandwidth
8.8 Gb/s
Packet Buffer
2.75 Mb
Electrical
Power Draw
120.00 W (Max)
3.2 W (Idle)
DC Input Power
54 VDC at 2.22 A
AC Input Power
No
PoE Power Budget
120 W
PoE per Port
30 to 90 W
Power Supply Type
External
Environmental
Operating Temperature
-22 to 149°F / -30 to 65°C
General
Certifications
CE, FCC
Cooling System
Passive
Material of Construction
Metal
Indicator Lights
Link/Activity/PoE, Power
Dimensions
5.9 x 3.9 x 1.7″ / 150 x 100 x 42 mm
Weight
1.3 lb / 0.6 kg
Packaging Info
Package Weight
2.815 lb
Box Dimensions (LxWxH)
11.7 x 9.3 x 2.9″
