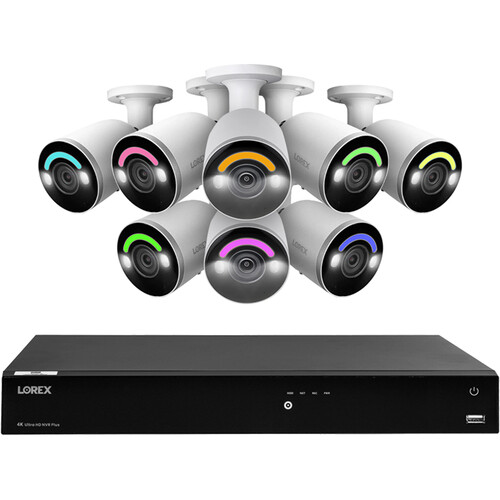

Lorex Fusion Series N864A64B-8AB8 16-Channel 4K UHD NVR with 4TB HDD & 8 4K Smart Deterrence Bullet Cameras

Add to Wishlist
Key Features
  • Record from and Manage up to 16 Cameras
  • 4K UHD Recording Resolution per Camera
  • 4TB Preinstalled HDD
  • 16 x PoE Ports
  • 8 x 4K Smart Deterrence Bullet Cameras
  • 98′ of Night Vision in Total Darkness
  • 108° Horizontal Field of View
  • Two-Way Audio & Remote-Triggered Siren
  • Dual Motion-Activated LED Spotlights
  • IP67-Rated Cameras

AED7,299.00

Add to Wishlist

Lorex N864A64B-8AB8 Overview

Monitor your home or business with the Fusion Series N864A64B-8AB8 16-Channel 4K UHD NVR with 4TB HDD & 8 4K Smart Deterrence Bullet Cameras from Lorex. This NVR has a storage capacity of up to 16TB (4TB preinstalled). Space-saving H.265 and H.264 video compressions reduce bandwidth requirements for efficient data storage while maintaining the best quality possible.

The included IP67-rated bullet cameras use 1/2.8″ CMOS sensors to capture 4K UHD resolution video at 15 fps. IR LEDs provide a night vision range up to 98′ in total darkness and 150′ in ambient lighting. The cameras each feature a 2.8mm fixed lens that delivers a 108° horizontal field of view, dual motion-activated LED warning spotlights, a remote-triggered siren to deter intruders, and smart motion detection that sends you a notification when a face, person, animal, vehicle, or package is detected via the Lorex Home app.

NVR Features
Voice control via Alexa and Google Assistant
Streaming options include: Chromecast, Apple TV, Amazon Echo Show, Google Home Hub, and Lenovo Smart Display (available separately)
HDMI and VGA video outputs
Person/vehicle motion detection
Smart Search feature to filter motion events for quick review
Wired/wireless Fusion, sensor Fusion, selectable siren, face detection, active view, mask detection, active deterrence, panic button, and safeguard support
Lorex Cloud and Lorex Home for remote management
24/7 security-grade preinstalled 4TB HDD
HDD storage expandable to 16TB
Backup via USB flash drive or USB HDD
System navigation via included USB mouse
Firmware upgrades via USB/network
Optional DDNS
Watchdog function for automatic recovery after power failure
Bullet Camera Features
Smart motion detection capable of detecting faces (including faces with masks), people, and vehicles
Package detection (missing package and package left behind)
Motion-activated LED warning spotlights
Remote-triggered siren to deter intruders
Smart Security Lighting enables you to choose from up to 16.7 million colors to customize the camera’s LED light
Assign colors for motion events and preset camera modes
Pre-recorded messages and quick messaging in mobile app
NTSC video format
Color night vision technology
Up to 98′ of night vision in complete darkness and up to 150′ in ambient lighting
HDR technology
SKU: N864A64B-8AB8 Category: Tag:

Lorex N864A64B-8AB8 Specs

NVR
Video Transmission Technology
IP
Channels
16
Video Inputs
16 x PoE
Video Outputs
1 x VGA
1 x HDMI
Audio
1 x RCA Input
1 x RCA Output
Alarm
4 x Inputs
2 x Outputs
Display Output Resolution
Up to 4K UHD, Auto Detect
Live Display
1, 4, 8, 9, 16
Maximum Speed: 4-Channels, 4K at 15 fps
OSD
On/Off
System Navigation
USB Mouse
Recording Resolution
8 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p
Recording Frame Rate
8 MP at 15 fps, 5 MP at 30 fps, 1080p at 30 fps, 720p at 30 fps
Recording Schedule
Continuous, Motion, Smart Motion (Person, Vehicle), Face Detection, Alarm, Day, Hour per Channel
Backup File Format
DAV, ASF, AVI, MP4
Video Compression
H.265, H.264
Simultaneous Playback
2-Channel: 4K at 30 fps
4-Channel: 4K at 15 fps
Playback Speed
Variable, Maximum 8x
Search
By Time/Date, All Motion Events or Smart Motion (Person, Vehicle), Area Search
HDD Bay
2
HDD Capacity
2 x 8 TB (SATA)
HDD Included
4 TB
Backup Media
USB Flash Drive & USB HDD
Motion Detection
Support for Person and Vehicle Smart Motion Detection
Features
Face Detection Support, Active View Support, Mask Detection Support, Active Deterrence Support, Panic Button, Safeguard, Smart Search, Wired/Wireless Fusion Support, Sensor Fusion Support, Selectable Siren Support
Voice Control
Amazon Alexa, Google Assistant
Streaming Options
Chromecast, Apple TV, Amazon Echo Show, Google Home Hub
Mobile App
Lorex Home for iOS & Android
Remote Viewing Options
Lorex Cloud for Windows & Mac PCs
Email Notification
Text & Snapshot
Network Interface
1000M RJ45
Network Bit Rate
200 Mb/s Total
DDNS
Optional
USB Interface
2 x USB 2.0
Firmware Upgrades
USB, Network
Watchdog Function
Yes
Power Consumption
13.2 W without HDD
Supply Voltage
100 to 240 VAC, 50/60 Hz, 48 VDC, 2 A
PoE Power Output
25.5 W for Single Port, 220 W Total
Operating Temperature
14 to 131°F / -10 to 55°C
Humidity
10 to 90% RH
Dimensions
14.7 x 12.9 x 2.1″ / 375 x 327 x 53 mm
Weight
5.8 lb / 2.6 kg without HDD
Bullet Camera
Transmission Technology
IP
Image Sensor
8 MP, 1/2.8″ CMOS
Video Format
NTSC
Video Compression
H.265, H.264H (Main Stream & Sub Stream)
Field of View
Horizontal: 108°
Lens
2.8mm Fixed
Aperture
f/1.6
Resolution
8 MP at 15 fps, 5 MP at 30 fps, 1080p at 30 fps, 720p at 30 fps
Effective Pixels (H x V)
3840 x 2160
HDR
Yes
Termination
RJ45
Two-Way Audio
Built-In Microphone & Speaker
Siren
Yes, Siren Sound Options Available
Night Vision Range
Complete Darkness: 98′ / 30 m
Ambient Lighting (Color Night Vision): 150′ / 45 m
Special Features
Smart Motion Detection Plus: Person/Vehicle Detection
Face Detection
Mask Detection
Package Detection (Missing/Left Behind)
Supports in App Quick Messaging
Active Deterrence: Warning Light, Siren, Pre-Recorded Message, Smart Security Lighting
Power Requirements
PoE Class 802.3af / 12 VDC
Power Consumption
Maximum 660 mA / 9.5 W
microSD Card Slot
Yes
Operating Temperature
-22 to 140°F / -30 to 60°C
Humidity
<95% RH
Housing Material
Aluminum Alloy
IP Rating
IP67
Dimensions (W x D x H)
2.9 x 6.9 x 2.9″ / 73 x 175 x 70 mm
Weight
1.15 lb / 0.52 kg
Packaging Info
Package Weight
37.36 lb
Box Dimensions (LxWxH)
26.3 x 18.9 x 18.7″
