Lorex Fusion Series N864A64B-8CA8 16-Channel 4K UHD NVR with 4TB HDD & 8 4K Bullet Cameras


Key Features
  • Record from and Manage up to 16 Cameras
  • 3840 x 2160 Recording Resolution
  • 4TB Preinstalled HDD
  • H.265/H.264 Video Codecs
  • 16 x PoE Ports
  • 8 x 4K Bullet Cameras
  • HDMI & VGA Video Outputs
  • Night Vision up to 90′ in Total Darkness
  • IP67-Rated Cameras

5,499.00 د.إ

Lorex N864A64B-8CA8Ā Overview

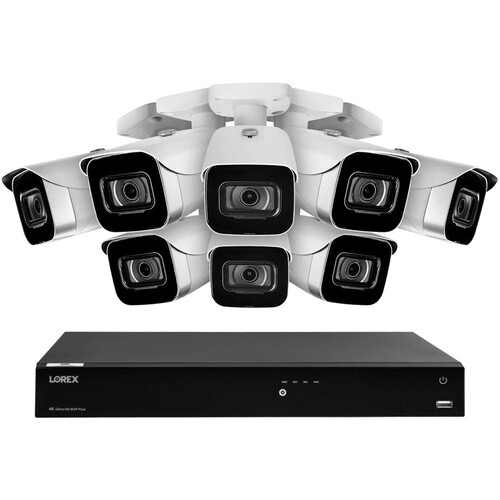

TheĀ Fusion Series N864A64B-8CA8 16-Channel 4K UHD NVR with 4TB HDD & 8 4K Bullet CamerasĀ fromĀ LorexĀ includes an N864A64B NVR bundled with eight E841CA-E 4K bullet cameras for an indoor/outdoor video surveillance solution.

Lorex Fusion Series N864A64B 16-Channel 4K UHD NVR with 4TB HDD

Record from and manage up to 16 cameras with theĀ Fusion Series N864A64B 16-Channel 4K UHD NVR with 4TB HDDĀ fromĀ LorexĀ at resolutions up to 3840 x 2160. The N864A64B is equipped with two SATA ports that each support an HDD up to 8TB, for a maximum capacity of 16TB (4TB preinstalled). H.265 and H.264 video compressions keep file sizes manageable while maintaining the best quality possible.

This NVR supports two-way audio. An HDMI and a VGA port enable video output to an external monitor at up to 4K UHD resolution (HDMI output only). Lorex Home and Lorex Cloud provides remote management via your iOS or Android device and your Windows or macOS computers.

Voice control via Amazon Alexa and Google Assistant
Streaming options include: Chromecast, Apple TV, Amazon Echo Show, Google Home Hub, and Lenovo Smart Display (available separately)
HDMI and VGA video outputs
Person/vehicle motion detection
Smart Search feature to filter motion events for quick review
Wired/wireless Fusion, sensor Fusion, selectable siren, face detection, active view, mask detection, active deterrence, panic button, and safeguard support
Lorex Cloud and Lorex Home for remote management
24/7 security-grade preinstalled 4TB HDD
HDD storage expandable to 16TB
Backup via USB flash drive or USB HDD
System navigation via included USB mouse
Firmware upgrades via USB/network
Optional DDNS
Watchdog function for automatic recovery after power failure

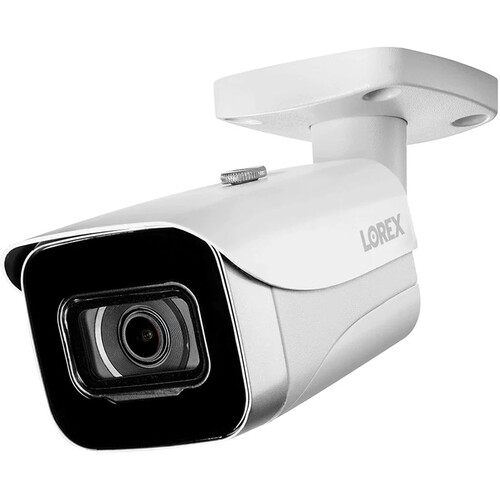

Lorex E841CA-E 4K UHD Outdoor Network Bullet Camera with Night Vision

Monitor an indoor or outdoor area with theĀ E841CA-E 4K UHD Network Bullet CameraĀ fromĀ Lorex. This unit uses a 1/2.7″ CMOS image sensor to capture 3840 x 2160 resolution video at 15 fps. IR LEDs provide a night vision range up to 90′ in total darkness and 130′ in ambient lighting. The camera features a 2.8mm fixed lens that delivers a 105° horizontal field of view. A memory card slot supports microSD cards (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.

This camera is housed in an IP67-rated aluminum alloy enclosure that is suitable for outdoor use.

NTSC video format
H.265 and H.264H video codecs
Color Night Vision technology for use in low light
Up to 90′ of night vision in complete darkness and up to 130′ in extremely low light
Rated IP67 for outdoor use
HDR technology
SKU: N864A64B-8CA8 Category: Tag:

Lorex Fusion Series N864A64B 16-Channel 4K UHD NVR with 4TB HDDĀ Specs

Key Specs
Number of Channels
16
Playback Resolution
HDMI:
Ā 3840 x 2160 (4K)
VGA:
Ā 1920 x 1080 (1080p)
Recording Resolution
4K at 15 fps
1080p, 720p, 3 MP, 5 MP at 30 fps
Throughput
200 Mb/s (Networking)
A/V I/O
1x HDMI
1x VGA
1x RCA Audio Input
1x RCA Audio Output
Communication I/O
16x RJ45 PoE
1x RJ45 Gigabit Ethernet
2x USB-A 2.0
Wi-Fi
Yes
Bluetooth
No
Installed Drive
4 TB Hard Drive
Mobile App Compatible
Yes: Android & iOS
App Name: Lorex Home, Lorex Cloud
PoE Power Budget
130 W
General
Number of Channels
16
Playback Resolution
HDMI:
Ā 3840 x 2160 (4K)
VGA:
Ā 1920 x 1080 (1080p)
Recording Resolution
4K at 15 fps
1080p, 720p, 3 MP, 5 MP at 30 fps
Playback Speeds
8x
Throughput
200 Mb/s (Networking)
IP Camera Support
16
2-Way Audio
Yes
Connectivity
A/V I/O
1x HDMI
1x VGA
1x RCA Audio Input
1x RCA Audio Output
Communication I/O
16x RJ45 PoE
1x RJ45 Gigabit Ethernet
2x USB-A 2.0
Audio I/O
1x Input
1x Output
System Connection
2x SATA
Wi-Fi
Yes
Bluetooth
No
Compatibility
Supported Video Codecs
H.264, H.265
Backup Formats
ASF, AVI, DAV, MP4
Software Upgrade
USB, Network
Backup Method
External HDD, USB Drive
Computing
Optical Drive
No
System
Installed Drive
4 TB Hard Drive
Max Capacity Supported
8 TB (Each Drive)
16 TB (Total)
Number of Bays
2x Internal
Software System Requirements
Mobile App Compatible
Yes: Android & iOS
App Name: Lorex Home, Lorex Cloud
Notifications
Alarm I/O
4x Input
2x Output
Event Trigger
Alarm, Alarm Out, Analytics, Email, Motion, Snapshot
Notification Type
Email
System Functions
Search Modes
Date/Time, Event, Motion, Smart Search
Recording Modes
Alarm, Analytics, Continuous, Motion, Schedule
Multi-Screen Configuration
1, 4, 8, 9, 16
Fisheye Dewarping
No
Electrical
Power Consumption
13.2 W (Without HDD)
Power Supply Type
External
PoE Power Budget
130 W
PoE per Port
25.5 W
Input Power
100 to 240 VAC, 50 / 60 Hz
48 VDC at 2 A
Environmental
Operating Temperature
14 to 131°F / -10 to 55°C
Operating Humidity
10 to 90%
Physical
Built-In Display
No
LED Indicators
Yes
Dimensions (W x D x H)
14.8 x 12.9 x 2.1″ / 375.0 x 327.0 x 53.0Ā mm
Weight
5.7Ā lb / 2.6Ā kg (Without HDD)
Packaging Info
Package Weight
10.5 lb
Box Dimensions (LxWxH)
21.1 x 16.4 x 7.7″

Lorex E841CA-E 4K UHD Outdoor Network Bullet Camera with Night VisionĀ Specs

Imaging
Number of Lenses
1
Image Sensor
1/2.7″-Type CMOS
Sensor Resolution
Effective: 8 Megapixel
IR Cut Filter
Yes Mechanical
Day/Night
Yes
Exposure Control
Minimum Illumination
0 Lux (Black and White)
Lens
Focal Length
2.8mm
Field of View
Horizontal: 105°
Maximum Aperture
f/2
Video
Max IP Streaming
via RJ45
3840 x 2160 up to 15 fps
2592 x 1944 up to 30.00 fps
Multi-View Streaming
Yes, 2 Streams
Control
Pan/Tilt
No
Networking
Supported Protocols
HTTP
Interface
Media/Memory Card Slot
Single Slot: microSD/microSDHC/microSDXC
Other I/O
1x RJ45
Built-In Microphone
No
Sensors & Alarms
Event Trigger
No
Alarm I/O
No
Power
PoE Support
PoE 802.3af
Power I/O
1x DC Input
1x RJ45 Input
Power Consumption
640 mA (7.68 W)
Environmental
Operating Temperature
-22 to 140°F / -30 to 60°C
Operating Humidity
0 to 95%
General
Material of Construction
Aluminum
Environmental Resistance
Water-Resistant (IP67)
Illumination
IR LEDs up to 90′ / 27.4Ā m
Mobile App Compatible
No
Dimensions (W x H x D)
2.8 x 2.8 x 7.1″ / 70 x 70 x 180Ā mm
Weight
0.97Ā lb / 0.44Ā kg
Packaging Info
Package Weight
2.915 lb
Box Dimensions (LxWxH)
15.9 x 6.2 x 4.6″
