LSI Logic LSI00213 3ware 512MB PCIe SAS SATA RAID Contoller


1,999.00 د.إ

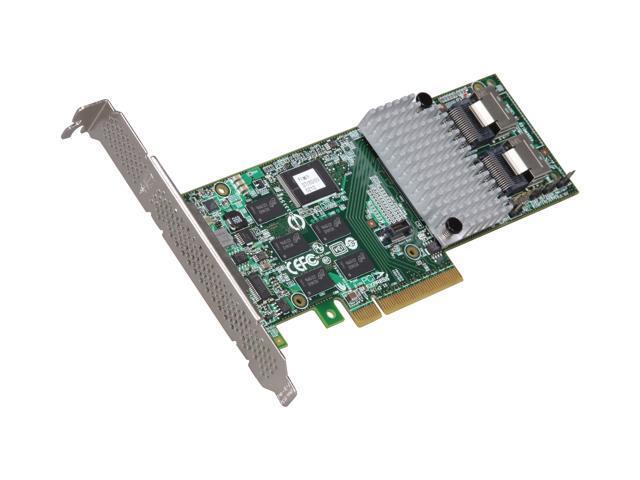

LSI Logic LSI00213 9750-8i 3ware 512MB 8 Port PCIe SAS/SATA 6Gbps RAID Controller – Brand New

LSI Logic LSI00213 9750-8i 3ware 512MB 8 Port PCIe SAS/SATA 6Gbps RAID Controller – Brand New

Alt MPN: 9750-8i

3wareĀ® SAS 9750-8i Eight-Port 6Gb/s PCI ExpressĀ® SATA+SAS RAID Controller Card

Unprecedented power in multi-stream RAID environments delivers high-performance and reliable data protection.

Expand Your Horizon – LSI 3ware SATA+SAS RAID controllers provide a new level of reliability, availability, and performance to businesses that are facing storage challenges, particularly in sequential I/O intensive and multi-stream environments. This 3ware controller, great for inside-the-box connectivity, employs the latest in LSI RAID-on- Chip (ROC) technology and provides a higher standard of data protection and performance. Offering data transfer rates of up to 6Gb/s per port, the latest generation of 3ware SATA+SAS controllers provide many new features while also ensuring investment protection for existing SATA and SAS implementations. LSI delivers unprecedented power in multi-stream RAID environments where performance, redundancy, and data protection are most important.

6Gb/s SAS Advantage – 6Gb/s SAS is designed for backward compatibility with 3Gb/s SAS as well as with 3Gb/s SATA drives. In addition, 6Gb/s 3ware controllers deliver significant performance improvements in both read and write applications regardless of drive speed. StorSaveā„¢ strengthens array performance during peak usage by allowing the controller to use both controller cache and disk cache for RAID operations. Other new features of the 6Gb/s 3ware SATA+SAS controller cards include greater signal integrity using Decision Feedback Equalization, support for more sophisticated SAS topologies using Expander Self-discovery/Self-configuration, and additional safeguards to enhance data protection.

StreamFusionā„¢+ Performance – 3ware’s advanced algorithms allow for optimized reads and writes in multi-stream environments. StreamFusion+ enables higher throughput even in degraded modes to deliver a superior standard of data protection and to boost performance. It is the result of countless hours of engineering aimed at delivering breakthroughs in high-load applications and providing enhanced features and functionality in all environments. Focusing on the latest technology trends and customer requirements, StreamFusion+ firmware reaffirms our commitment to customer success and industry leadership.

Key Features

  • Eight internal 6Gb/s SATA+SAS ports
  • Two Mini-SAS internal connectors (SFF8087)
  • RAID levels 0, 1, 5, 6,10, 50 and Single Disk
  • LSISAS2108 6Gb/s RAID-on-Chip– 800MHz PowerPCĀ®
  • 512MB 800MHz DDRII cache memory
  • Optional battery backup module with StorSave BBU
  • Support for up to 127 SATA or SAS physical devices

Key Advantages

  • PCI Express 2.0 provides faster signaling for high- bandwidth applications
  • Support for 3Gb/s and 6Gb/s, SAS and SATA, HDDs and SSDs
  • StreamFusion+ improves multi-stream read and write performance
SKU: LSI00213 Category: Tag:
Weight 0.907 kg
SPECIFICATIONS
Part Number LSI00213
Alt Part Number 9750-8i
Product 3ware SAS 9750-8i
RAID-on-Chip-Controller LSISAS2108 RAID-on-Chip (ROC)
Cache Protection LSIiBBU07, an optional intelligent battery backup module that connects directly to the controller
Raid Management Software 3wareĀ® Disk Manager 2 (3DM2ā„¢)
Command Line Utility (CLI)
3ware BIOS Manager (3BM)
SNMP support
Physical Dimensions MD2 Low Profile (6.6″ x 2.536″)
Host Bus Type x8 lane PCI Express 2.0
Cache Memory 512MB 800MHz DDR II SDRAM
Internal Ports 8
Data Transfer Rates Up to 6Gb/s per port
Devices Supported Up to 127 SATA and /or SAS devices
Internal Connectors 2 Mini-SAS SFF8087 (horizontal)
MTBF 1,093,393 hours
Operating Temperature Maximum ambient: 60°C (44.5 w/LSIiBBU07)
Operating Systems Extensive support includes MicrosoftĀ® Windows VistaĀ®, Windows 7Ā®, Windows ServerĀ® 2003/2008, Red Hat LinuxĀ®, SuSE LinuxĀ®, Fedora Core LinuxĀ®, FreeBSDĀ®, and more.
Operating Voltage +3.3V,
Regulatory Certifications EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick
