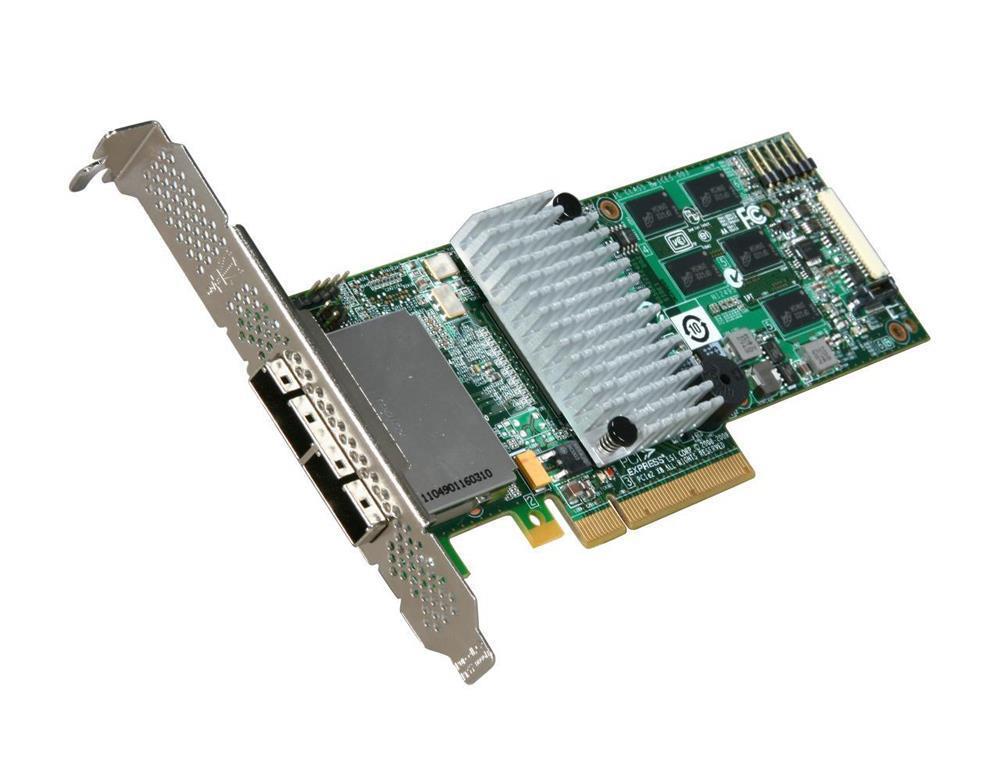

LSI Logic LSI00250 3ware 512MB PCIe SAS SATA RAID Controller

LSI Logic LSI00250 3ware 512MB 8 Port PCIe SAS/SATA 6Gbps RAID Controller – Brand New

LSI Logic LSI00250 3ware 512MB 8 Port PCI Express, SAS, Serial ATA 6.0 Gbps RAID Controller – Brand New

Alt MPN: 9750-8e

3ware® SAS 9750-8e Eight-Port 6Gb/s PCI Express® SATA+SAS RAID Controller Card

Unprecedented power in multi-stream RAID environments delivers high-performance and reliable data protection.

Expand Your Horizon – LSI 3ware SATA+SAS RAID controllers provide a new level of reliability, availability, and performance to businesses that are facing storage challenges, particularly in sequential I/O intensive and multi-stream environments. This 3ware controller bolsters high capacity external server storage RAID and non-RAID enclosures and provides a higher standard of data protection and performance with the latest in LSI RAID-on-Chip (ROC) technology. Using the external SAS ports, multiple JBODs can be connected to a server, providing a scalable and affordable solution for growing storage requirements.

Offering data transfer rates of up to 6Gb/s per port, the latest generation of 3ware SATA+SAS controllers provide many new features while also ensuring investment protection for existing SATA and SAS implementations. LSI delivers unprecedented power in multi-stream RAID environments where performance, redundancy, and data protection are most important.

6Gb/s SAS Advantage – 6Gb/s SAS is designed for backward compatibility with 3Gb/s SAS as well as with 3Gb/s SATA drives. In addition, 6Gb/s 3ware controllers deliver significant performance improvements in both read and write applications regardless of drive speed. StorSave™ strengthens array performance during peak usage by allowing the controller to use both controller cache and disk cache for RAID operations. Other new features of the 6Gb/s 3ware SATA+SAS controller cards include greater signal integrity using Decision Feedback Equalization, support for more sophisticated SAS topologies using Expander Self-discovery/Self-configuration,and additional safeguards to enhance data protection.

StreamFusion™+ Performance – 3ware’s advanced algorithms allow for optimized reads and writes in multi-stream environments. StreamFusion+ enables higher throughput even in degraded modes to deliver a superior standard of data protection and to boost performance. It is the result of countless hours of engineering aimed at delivering breakthroughs in high-load applications and providing enhanced features and functionality in all environments. Focusing on the latest technology trends and customer requirements, StreamFusion+ firmware reaffirms our commitment to customer success and industry leadership.

Remote Creation, Management and Monitoring with 3DM2™ – 3DM2 is powerful remote management software that simplifies the configuration, management and monitoring of 3ware storage arrays. 3DM2 provides an intuitive interface to remotely create, manage and monitor your 3ware RAID arrays and single disks in a robust, secure array management environment for your RAID protected data. Proven self-monitoring technologies and automatic notification services can maximize your storage availability while minimizing the pressure on system administrators.

Key Features

• Eight external 6Gb/s SATA+SAS ports
• Two Mini-SAS external connectors SFF8088)
• RAID levels 0, 1, 5, 6,10, 50 andSingle Disk
• LSISAS2108 6Gb/s RAID-on-Chip–800MHz PowerPC®
• 512MB 800MHz DDRII cache memory
• Optional battery backup module with StorSave™ BBU
• Support for up to 127 SATA or SAS physical devices

Key Advantages

• PCI Express 2.0 provides faster signaling for high-bandwidth applications
• Support for 3Gb/s and 6Gb/s, SAS and SATA, HDDs and SSDs
• StreamFusion®+ improves multistream read and write performance
