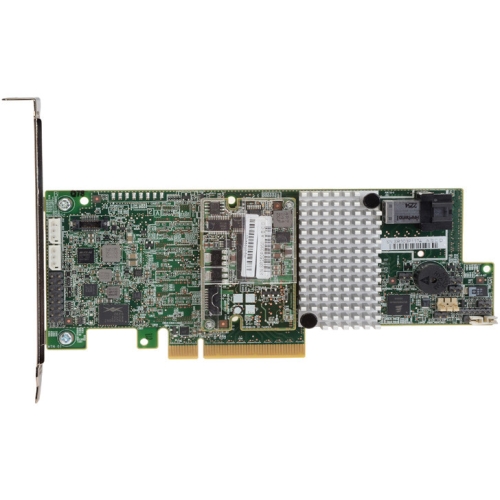

LSI Logic LSI00414 PCIe SAS SATA MegaRAID Controller


2,399.00 د.إ

LSI Logic LSI00414 4 Port PCIe SAS/SATA 12Gbps MegaRAID Controller – Brand New

LSI Logic LSI00414 4 Port PCI Express, SAS, Serial ATA 12.0 Gbps MegaRAID Controller – Brand New

Alt MPN: 9361-4i

MegaRAIDĀ® SAS 9361-4i High Performance 12Gb/s PCI Express SATA+SAS RAID Controller

Unmatched RAID Performance for Next-Generation Servers and Storage – The explosive growth of data in cloud and enterprise datacenters is driving the need for a higher performance storage interface to speed the ability of critical applications to access data. Avago first-to-market 12Gb/s SAS solutions are designed to deliver the performance and data protection capabilities required for the most demanding next-generation server and storage platforms. Offering up to double the data transfer rate of 6Gb/s SAS solutions, 12Gb/s SAS allows the SAS infrastructure to deliver bandwidth that can fully utilize that of PCI ExpressĀ® 3.0 with a single controller card. The MegaRAID SAS 9361-4i, with four internal ports, delivers two 1.2GHz PowerPCĀ® processor cores and a 72-bit DDRIII interface that drives 1GB cache memory. Powered by the LSI SAS 3108 dual-core ROC, the 9361-4i controller includes the latest PCI Express 3.0 and 12Gb/s SAS technology and helps users to support increased scaling of hard disk drives (HDDs) and maximize the performance benefits of solid state drives (SSDs).

Enterprise Data Protection – Standard support for the most popular RAID levels and accessories, including RAID 5, RAID 6, and CacheVaultĀ® Flash cache protection module, further strengthen the data protection capabilities of the MegaRAID SAS 9361-4i. A new enterprise feature employed by the 12Gb/s MegaRAID SAS controllers is advanced drive diagnostic technology. In the event of a physical drive failure, the drive is placed in a shielded state and the MegaRAID controller starts drive diagnostics to determine if the drive is indeed failed or can be restored. This saves customers time, money and lost compute time associated with transient drive failures and unnecessary drive returns.

Support for Advanced Software Options – The family of 12Gb/s MegaRAID controllers are designed to support Avago advanced software options that provide system integrators and VARs with enhanced performance and data protection capabilities. These software options help enable end users to address key business challenges while helping to deliver a higher return on their IT investments. MegaRAID CacheCadeā„¢ Pro 2.0 software (optional) and MegaRAID Fast Path software (included) boost transactional I/O performance of solid state disk configurations, while SafeStoreā„¢ software enables enhanced data protection and security when used with encryption capable devices.

Key Features

  • High performance 12Gb/s data transfer rates
  • Four internal 12Gb/s SATA+SAS ports
  • One mini-SAS SFF8643 internal connector (horizontal mount)
  • LSI SAS 3108: 1.2GHz PowerPCĀ® 476 dual core 12Gb/s ROC
  • PCI Express 3.0 host interface
  • 1GB DDRIII cache memory
  • RAID levels 0, 1, 5, 6, 10, 50, and 60
  • Support for CacheVaultĀ® flash cache protection

Key Advantages

  • 12Gb/s solutions accelerate performance for next-generation datacenters, web and cloud
  • Delivers enterprise-class data protection and security
  • Preserves investment in 6Gb/s and 3Gb/s drives
  • Support for Advanced Software options
  • Connect up to 128 3Gb/s, 6Gb/s, or 12Gb/s SATA and SAS devices
SKU: LSI00414 Category: Tag:
Weight 0.907 kg
SPECIFICATIONS
Part Number LSI00414
Alt Part Number 9361-4i
Product MegaRAID 9361-4i
RAID-on-Chip-Controller LSISAS3008 PowerPC 476 controller @ 1.2 GHz
Raid Management Software MegaRAID Storage Manager
StorCLI (command-line interface)
CTRL-R (BIOS configuration utility)
HII (UEFI Human Interface Infrastructure)
Cache Protection Optional CacheVault Flash Module (LSICVM02)
Physical Dimensions 6.6″ x 2.536″ (Low Profile)
Host Bus Type x8 lane PCI Express 3.0
Cache Memory 1GB 1866MHz DDRIII SDRAM
Internal Ports 4
Data Transfer Rates Up to 12Gb/s per port
Devices Supported Up to 128 SAS and/or SATA hard drives and SSDs
Internal Connectors 1 HD Mini-SAS SFF8643 (horizontal mount)
MTBF 1,343,187 hours
Operating Temperature Maximum ambient: Controller Card: 55°C, with optional CacheVault accessory (LSICVM02) 55°C
Operating Voltage +3.3V, +12V
Operating Systems Extensive support includes MicrosoftĀ® WindowsĀ® Vista/2008/Server 2003/2000/XP, LinuxĀ®, Solarisā„¢ (x86), NetwareĀ®, FreeBSDĀ®, VMwareĀ® and more.
Reglulatory Certifications EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Safety: EN60950
