Lumantek EZ-HSV+ HDMI to SDI Converter with Display and Scaler

Add to Wishlist
Key Features
  • Converts HDMI to Two SDI
  • Analog Audio Stereo Input
  • Adjustable 480i to 1080p Resolution
  • 6-Position DIP Switch

AED999.00

Add to Wishlist

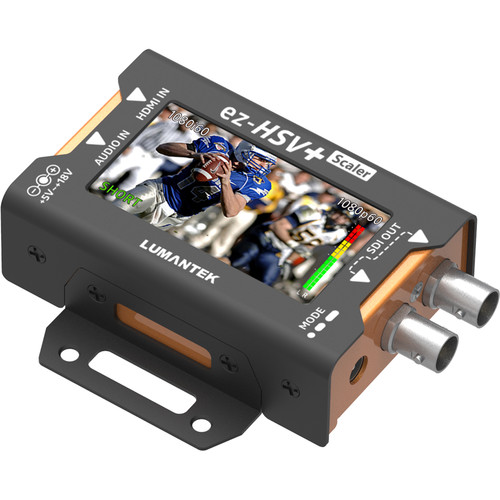

The EZ-HSV+ HDMI to SDI Converter with Display and Scaler from Lumantek features an HDMI input and two SDI outputs. It has an external analog stereo audio input which can be embedded into the video. The converter allows you to display the video in its 2.7″ TFT LCD screen. The screen displays the input audio level along with input / output resolutions. You can adjust the resolution from 480i to 1080p via the DIP switch. The 6-position DIP switch allows you control Mode setting, including output video resolution and ratio and audio input settings. The MODE switch provides LCD backlight brightness control and screen rotation adjustment, and enables you to turn the screen on or off.

SKU: EZ-HSV+ Category: Tag:
Inputs / Outputs
Video Inputs
1x HDMI (3G-SDI)
Audio Inputs
1x 1/8″ / 3.5 mm TRS Stereo Analog
Video Outputs
2x BNC (3G-SDI)
Format Support
Input Video Format
HDMI
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
576i / 625 lines 50 fps
480i / 525 lines 59.94/60 fps
Output Video Format
SDI
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
576i / 625 lines 50 fps
480i / 525 lines 59.94 fps
Hardware
Display Size
2.7″
Power
Power I/O
1x Barrel (5 to 18 VDC ) Input
Power Consumption
Power Supply: 100 to 240 VAC at 1 A (45 W)
Environmental
Operating Temperature
32 to 77°F / 0 to 45°C
General
Dimensions
3.4 x 2.25 x 1.05″ / 86.3 x 57.2 x 26.6 mm
Weight
0.66 lb / 299 g
Packaging Info
Package Weight
1.1 lb
Box Dimensions (LxWxH)
5.9 x 4.3 x 3.65″
