Conferencing Camera

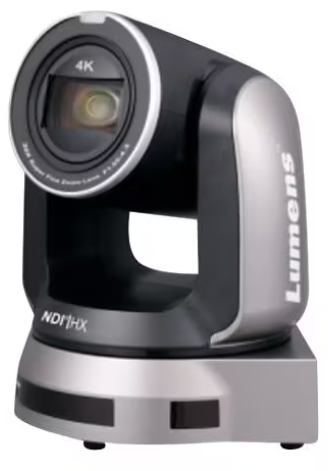

Lumens VC-A71PN – conference camera
Quick tech specs
- A71PN
- PTZ
- 9.17 MP
- SDI, HDMI
- H.264, HEVC
- Conference camera
- color
- audio
- LAN 10/100
- DC 12 V / PoE Plus
AED28,199.00
(TAA) 30x Optical Zoom, 4K IP Pan/Tilt/Zoom (PTZ) Video Camera; Black Color.
| Brand | Lumens |
| Product Line | Lumens |
| Model | VC-A71PN |
| Manufacturer | LUMENS |
| Network & Communication | Network Interface | Ethernet 10Base-T/100Base-TX |
| Protocols | RTMP, RTSP |
| Connectivity | Connectivity Technology | Wired |
| Ports | Audio line-in/microphone – 3.5 mm jack, HDMI, LAN/power, Serial RS-232 input – 8 pin mini-DIN, Serial RS-232 output – 8 pin mini-DIN, Serial RS-422 – terminal block |
| Display & Graphics | Image Sensor Size | 1/1.8″ |
| Image Sensor Type | CMOS |
| Tilt | -30 to +90 |
| Touchscreen | No |
| Video | Audio Formats | AAC |
| Audio Support | Yes |
| Camera Mechanical Design | Pan / tilt / zoom |
| Control Interface | RS-232, RS-422, VISCA |
| Digital Zoom | 12 |
| Max Frame Rate | 60 frames per second |
| Max Panning Speed | 300 degrees/second |
| Max Tilting Speed | 300 degrees/second |
| Panning Range | -170 to +170 degrees |
| Shutter Speed (Max) | 1/10,000 second |
| Shutter Speed (Min) | 1/1 second |
| Video Modes | 1080/25p, 1080/30p, 1080/50i, 1080/50p, 1080/59.94i, 1080/59.94p, 2160/25p, 2160/29.97p, 2160/50p, 2160/59.94p, 4K, 720/50p, 720/59.94p |
| Video Signals | HDMI, SDI |
| Camera | Camera Type | Conference camera |
| Power | Low Voltage Power | DC 12 V / PoE Plus |
| Power Consumption Operational | 16 watt |
| Power Device Type | Power adapter |
| Technical Information | Angular Field of View (H, Min, Degree) | 63 |
| Focus Modes | Automatic, Manual |
| Lens Aperture | F/1.6-4.8 |
| Max Focal Length | 202 millimetres |
| Min Focal Length | 6.5 millimetres |
| Min Focus Distance | 5 ft |
| Minimum Illumination | 0.05 lux F1.6 – 50 IRE |
| Optical Zoom | 30 |
| Sensor Size (metric) | 14.1 mm (1/1.8″) |
| Total Pixels | 9,170,000 pixels |
| Video Formats | H.264, HEVC |
| Video Input | Color |
| Product Information | Features | 256 preset positions, 3D Noise Reduction Technology, Auto exposure control, Auto gain control, Auto white balance, Built-in NDI, Image flip, Manual exposure, Manual gain control, Manual white balance, Pelco Protocol, Tally light, Wide Dynamic Range (WDR) |
| Packaged Quantity | 1 |
| Security Slot Type | Kensington security slot |
| Theft Protection | Security lock slot (cable lock sold separately) |
| Dimensions & Weight | Height | 9.1 inch |
| Weight | 6.61 lbs |
| Width | 7.4 inch |
| Depth | 7.4 inch |
| Physical Characteristics | Color | Black |
| Color Category | Black |
| Certifications & Listings | ENERGY STAR Certified | No |
| EPEAT Compliant | No |
| TCO Certified | No |
