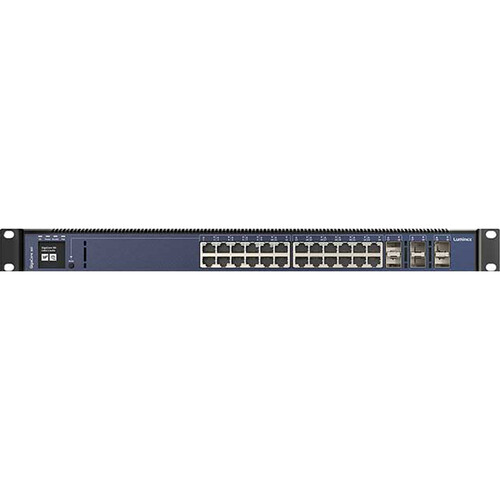

Luminex GigaCore 30i 10Gb AV Network Switch with PoE++ (Dual PSU)

• Most suitable applications: Fixed installations
• PoE: PoE ++
• Two PSU for expanded power
• RLinkX (Link redundancy): Yes
• Groups (VLAN segmentation): Yes
• MultiLinkX (Link aggregation): Yes (With future FW upgrade)
• Profile manager: Yes
• Memory: Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storage
• MAC address table: 16384 entries
• Address learning / Aging: Self learning, Auto aging
• Switching throughput: 168 Gb/s
• Jumbo frames: MTU up to 12000
• IGMP support: Yes (V1/V2/V3)
• IGMP snooping: Yes, enabled by default
• Port sensing: Auto negotiation
• Auto crossover: MDI / MDIX
• Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)

10Gb connectivity allows full network convergence of lighting control, audio, intercom, and compressed video.

• PoE++ implementation on every copper port allows you to connect any PoE device available today.
• Today’s PoE standards (802.3af, 802.3at and 802.3bt) are all met. GigaCore 30i can directly drive almost any IP PTZ camera, network node or PoE powered loudspeaker on the market.

• GigaCore switches are fully validated in real-world applications with major brands in the AV industry for different protocols, including NDI, Dante, AES67, ST-2110, IPMX, MA-Net, and many more. (AVB/MILAN supported in future firmware)
• We don’t just approve against a protocol but actually test it. Because of real world application validation and interoperability testing, we understand the applications and make sure you can deploy our product with confidence.
• Luminex support team really speaks your language and has a vast amount of AV knowledge built up, not just from talking protocols but mainly from working with you and living through your real application network challenges.





• A robust yet silent design allows you to use GigaCore in any AV environment.
• Fans are speed controlled to have minimal noise impact and guarantee a long-life operation. This allows you to place the GigaCore in the most quiet environments like theaters and studios.





• All GigaCore switches can be managed with a single network-wide tool: Araneo
• Araneo’s online mode shows everything you need to know about the status of your GigaCore network. Data streams and topology are visualized as are the port status of every GigaCore.
• Monitor your network with confidence and act before the show gets interrupted!
• In offline mode, Araneo lets you plan the complete network topology and GigaCore settings in advance. Reducing network commissioning time to a mere click of a button.

The built-in web UI allows you to adjust the settings in an intuitive way. Assigning Groups (VLANS) to ports, creating trunks or adjusting other port- and PoE settings can be done on the fly and the status page gives you an overview of the complete switch at a glance. The toolbox page allows management of profiles and lets you upgrade firmware easily.

Consistent Group (VLAN) colors in the web UI, in Araneo, and on the front panel LED’s.

Standards

• 802.3af
• 802.3at
• 802.3bt

PoE Ports

• 802.3af, 802.3at, 802.3bt
• On ports 1-24

Total PoE power budget 500 W (1x slide in PSU)

• 1000 W (2x slide in PSU)
• LLDP Support Yes

Power Allocation (User Configurable)

• Priority per port
• Consumption vs Class/LLDP based

Power Limit

• Total power budget firmware limit – port shutdown at overload based on port priority
• Per port hardware and firmware power limits based on classification – port shutdown at overload

• Boot Time: 45 s
• Redundant Links: Yes
• Group Function: Yes
• Jumbo Frames: Yes, supported up to 12000 MTU (with restrictions when using AVB)



Ethernet Compliance

• IEEE 802.2
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3x Flow Control
• IEEE 802.3ab Gigabit Ethernet
• IEEE 802.3af PoE(optional)
• IEEE 802.3at PoE+(optional)
• IEEE 802.3bt PoE++ 90W(optional)
• IEEE 802.1p CoS
• IEEE 802.1d Spanning Tree
• IEEE 802.1w Rapid Spanning Tree
• IEEE 802.1s Multiple Spanning Tree
• IEEE 802.1Q VLAN
• IEEE 802.1ab LLDP
• IEEE 1588-2008 PTPv2

Supported protocols

• Avnu AVB/Milan (Available in future FW update)
• Dante
• RAVENNA/AES67
• Ethersound
• Q-SYS/Q-LAN
• sACN
• ArtNet
• MANet
• HogNet
• RTTrPL (BlackTrax)

• Audio Protocol Compliance: Yes, low jitter and hardware timestamping (IEEE 1588-2008)
• Ethernet Switch Type: Full non- blocking wire-speed switching performance
• Mac Address Table: 16384 entries
• Address Learning / Aging: Self learning, Auto aging
• Switching Throughput: 168 Gb/s (10 Gb/s versions)
• IGMP Querrier: Yes (V1|V2) (V3 compatible)
• IGMP Snooping: Yes, enabled by default (V1|V2|V3)
