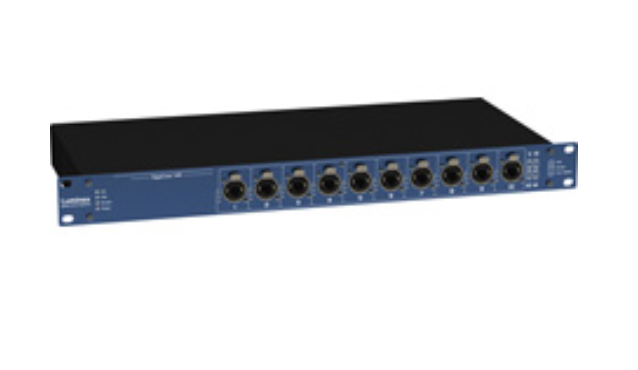

Luminex Network – LU 01 00038-POE – GigaCore 14RPOE Rackmount Touring 12-Port EtherCON & 2-SFP Port POE Gigabit Ethernet Switch / Dante / AES Switch
AED21,899.00
GigaCore 14RPOE Rackmount Touring 12-Port EtherCON & 2-SFP Port POE Gigabit Ethernet Switch / Dante / AES Switch
- Specifications:
- Ethernet Connectivity: 12 x Shielded Neutrik Ethercon connectors
- Fiber Connectivity: 2 x SFP cages
- Ethernet Port Speed: 1Gbps
- Serial: 1 x serial RJ45 console port
- Power Connectivity: 1 x IEC (14C) inlet with fuse holder: 1 x redundant power input on Molex Micro-Fit 6 pin connector: 1 x redundant PoE input on Molex Micro-Fit 6 pin connector
- Power Input: 100-240VAC, 50-60Hz
- Power Consumption: Maximum 30W or 180W with PoE
- Fuse: 3.15A 250V Slow Blow
-
- Backup Power Input: 15VDC / 2A
- Backup PoE Power Input: 48VDC/3.4A
- PoE: Optional on front ports only (up to 160W)
- Mounting: Rack
- Enclosure: Robust Metal Housing
- Dimensions: 19″ x 8.04″ x 1.73″ (WxDxH)
- Weight: 6.4 lbs
- Environment: Operating temperature: 32 to 122 ° F: Storage temperature: 14 to 158 ° F: Humidity (non condensing): 5 to 95% RH
- Noise Level: Max 30dBA (Ambient: 32 – 95° F): Max 42dBA (Ambient: 95 – 122° F)
