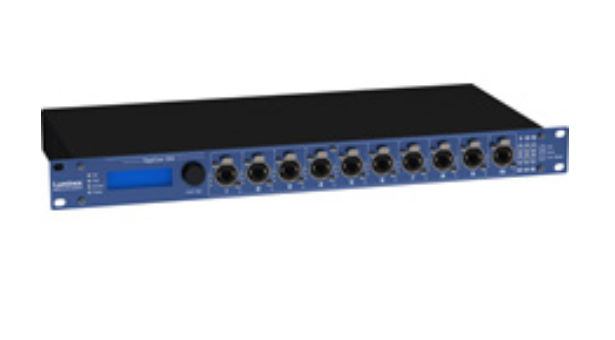

Luminex Network – LU 01 00048-POE – GigaCore 16XtPOE Touring 12-Port EtherCON & 4-SFP Port POE Gigabit Ethernet Switch Dante Switch AES67 Switch

Add to Wishlist

AED28,799.00

Add to Wishlist

GigaCore 16XtPOE Touring 12-Port EtherCON & 4-SFP Port POE Gigabit Ethernet Switch Dante Switch AES67 Switch

SKU: LU 01 00048-POE Category: Tag:
  • Specifications:
  • Most suitable applications: Touring and live events
  • RLinkX (Link redundancy): Yes
  • Groups (VLAN segmentation): Yes
  • MultiLinkX (Link aggregation): Yes
  • Profile manager: Yes
  • Memory: 4Mb
  • MAC adress table: 8192 Entries
  • Address learning / Aging: Self learning, Auto aging
  • Switching throughput: 32Gbps
  • IGMP support: Yes (V1/V2/V3)
  • IGMP snooping: Yes, enabled by default
  • Port sensing: Auto negotiation
  • Auto crossover: MDI / MDIX
  • Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)
  • Ethernet connectivity: 12 x Shielded Neutrik Ethercon connectors
  • Fiber connectivity: 4 x SFP cages
  • Ethernet port speed: 1Gbps
  • Serial: 1 x serial RJ45 console port
  • Power connectivity:
  • 1 x IEC inlet with fuse holder
  • 1 x redundant power input on Molex Micro-Fit 6 pin connector
  • 1 x redundant PoE input on Molex Micro-Fit 6 pin connector
  • Power input: 100-240VAC, 50-60Hz
  • Power consumption: Maximum 30W (maximum 180W with PoE Supply Unit)
  • Fuse: 3.15A 250V Slow Blow
  • Backup power input: 15VDC / 2A
  • Backup PoE power input: 48VDC / 3.4A
  • PoE supply on front ports: up to 160W
  • Supported protocols: Dante, RAVENNA/AES67, Ethersound, Q-LAN, REAC, sACN, Art. Net, MANet2, Hog. Net, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), Diff. Serv (DSCP), PoE (802.3af) (optional), PoE+ (optional), IEEE 1588 PTP V2
  • Sound protocol compliance: Yes (low jitter)
  • Ethernet compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet
  • Display and jog: Yes
  • Configuration: Through the built-in web server or with the front end display menu
  • Status LEDs:
  • Global status LEDs: Device, power, PoE power, RLinkX
  • Port status LEDs: PoE, RLinkX, link/activity and port speed
  • Colored RGB LEDs: No
  • Mounting: Rack
  • Enclosure: Robust metal housing
  • Dimensions (W x D x H): 482 x 204, 3 x 44 mm (19″ x 8.04″ x 1.73″)
  • Weight: 3 kg
  • Packaging: 545 x 335 x 80 mm (21.5″ x 13.2″ x 3.15″)
  • Environment:
  • Operating temperature: 0 to +50 ° C
  • Storage temperature: -10 to +70 ° C
  • Humidity (non condensing): 5 to 95% RH
  • Certificates/Approvals: CE
  • Standards: EN 60950-1, EN 55022, EN 55024
