Switches

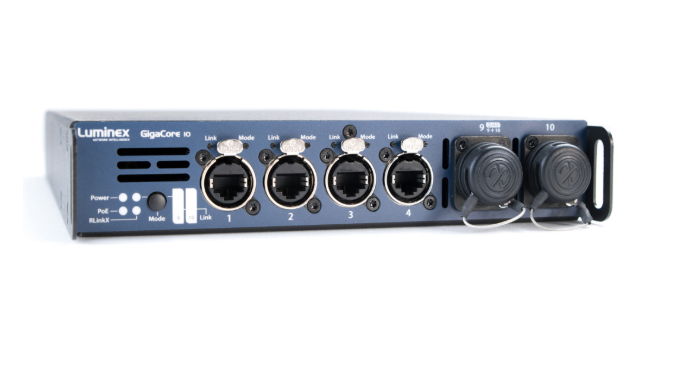

Luminex Network – LU0100058 – GigaCore 10 Ethernet Switch with 8 Shielded Neutrik Ethercon Connectors
AED11,499.00
- Specifications:
- Ethernet connectivity: 8 x Shielded Neutrik Ethercon connectors
- Fiber connectivity: 2 x slot for rugged fiber connectors
- Ethernet port speed: 1Gbps
- Serial: None
- Power connectivity: 1x Neutrik powerCON TRUE1
- Power input: 100-240VAC, 50-60Hz
- Power consumption: Maximum 20W (maximum 150W with PoE Supply Unit)
- Fuse: None
- Backup power input: None
- Backup PoE power input: None
- PoE supply on front ports
- upported protocols: Dante©, RAVENNA/AES67©, Ethersound©, Q-LAN, REAC©, sACN, Art. Net, MANet2, Hog. Net, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), Diff. Serv (DSCP), PoE (802.3af) (optional), PoE+ (optional), IEEE 1588 PTP V2
- Sound protocol compliance: Yes (low jitter)
- Ethernet compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet
- Mounting: Truss, rack or wall
- Enclosure: Robust metal housing
- Dimensions(W x D x H): 8.66 inch x 13 inch x 1.73 inch (220 x 330 x 44 mm)
- Weight: 6.1lbs (2.8 kg)
- Packaging: 21 inch x 13 inch x 3.15 inch (530 x 330 x 80 mm)
- Environment:
- Operating temperature: 32° F to 122° F (0 to +50 ° C) (non-PoE version), 32° F to 104° F (0 to +40 ° C) (PoE version)
- Storage temperature: 14° F to 158° F (-10 to +70 ° C)
- Humidity (non condensing): 5 to 95% RH
