Switches
Luminex Network – LU0100080-10G – LU0100080-10G GigaCore 20t – 10G Ethernet Switch for Professional Tour Applications – No PoE++
- Most suitable applications: Touring applications
- RLinkX (Link redundancy): Yes
- Groups (VLAN segmentation): Yes
- MultiLinkX (Link aggregation): Yes (With future FW upgrade)
- Profile manager: Yes
- Memory: Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storage
- MAC address table: 16384 entries
AED28,799.00
LU0100080-10G – Overview

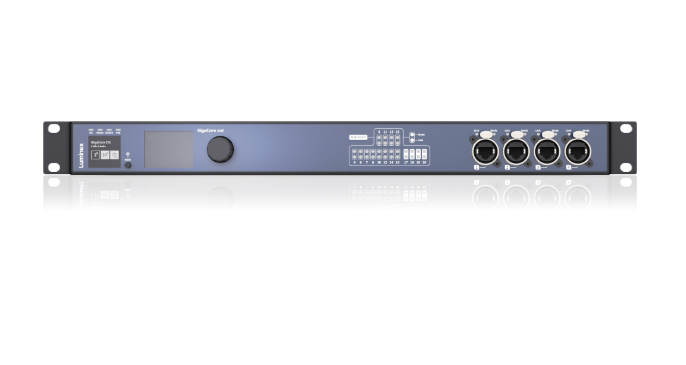

The Luminex LU010008010G GigaCore 20t is a 10 Gigabit Ethernet switch for professional touring applications in lighting, audio and video with a frequent tear-down & built-up requirement or for any other application where ruggedized connectivity is necessary.
It is designed to support the most advanced AV protocols out of the box and is the backbone for a converged network, allowing multiple applications to co-exist on the same network.
10Gb connectivity allows full network convergence of lighting control, audio, intercom, and video.
Features:
- Most suitable applications: Touring applications
- RLinkX (Link redundancy): Yes
- Groups (VLAN segmentation): Yes
- MultiLinkX (Link aggregation): Yes (With future FW upgrade)
- Profile manager: Yes
- Memory: Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storage
- MAC address table: 16384 entries
- Address learning / Aging: Self learning, Auto aging
- Switching throughput: 112Gbps
- Jumbo frames: MTU up to 12000
- IGMP support: Yes (V1/V2/V3)
- IGMP snooping: Yes, enabled by default
- Port sensing: Auto negotiation
- Auto crossover: MDI / MDIX
- Specifications:
- Ethernet connectivity: 8 x EtherCon conectors (4x front, 4x rear) (1Gbps) 8 x RJ 45 connectors (rear) (1Gbps)
- Fiber connectivity: 4 x SFP+ cages (10Gbps/1Gbps) (independent from other ports) (rear)
- Ethernet port speed: 1Gbps
- Power connectivity: 1 x PowerCON True 1 in/out
- Power input: 100-240VAC, 50-60Hz
- Power consumption: Minimum 50W – Maximum 1050W
- Backup power input: Yes (PoE models only)
- Mounting: Rack
- Enclosure: Robust metal housing
- Dimensions: 19″ x 8.54″ x 1.73″ (WxHxD)
- Environment: Operating temperature: 32 to 122 ° F: Storage temperature: 14 to 158 ° F: Humidity (non condensing): 5 to 95% RH
Based on 0 reviews
Be the first to review “Luminex Network – LU0100080-10G – LU0100080-10G GigaCore 20t – 10G Ethernet Switch for Professional Tour Applications – No PoE++”
