Lynx Technik AG 12G/3G/HD/SD-SDI to HDMI Converter

Add to Wishlist
Key Features
  • Supports SDI up to 12 Gb/s, 2160p
  • 12G/3G/HD/SD-SDI In with Loop-Out
  • De-Embedded AES and Analog Audio Output
  • HDMI Output Supports Embedded Audio
  • Timecode and Data Burn-In
  • H/V Delay/Flip, Safe Area/Marker Overlay
  • Access Advanced Setting with yellowGUI
  • Fiber SFP Cage for Fiber I/O Module
  • USB Port for GUI and Fireware Updates
  • 12 VDC Power Supply Included

AED5,699.00

Add to Wishlist

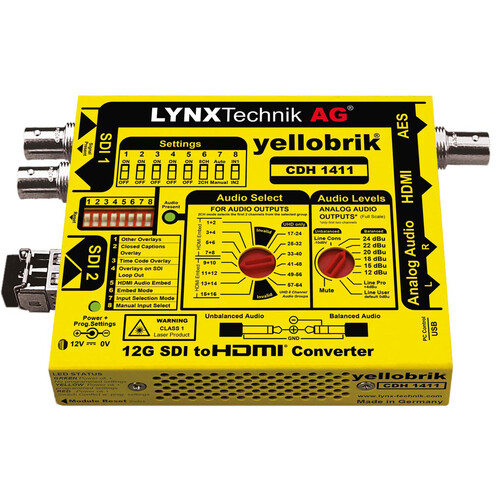

The yellowbrik 12G/3G/HD/SD-SDI to HDMI Converter from Lynx Technik AG converts most SDI sources up to 12 Gb/s, 2160p into HDMI signals. It can de-embed SDI audio to 16-channel AES and balanced or unbalanced stereo analog. It also features SFP slots for fiber input and output to extend the signal using fiber transmission.

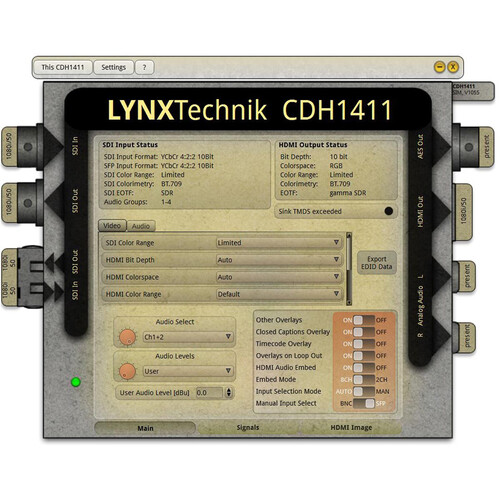

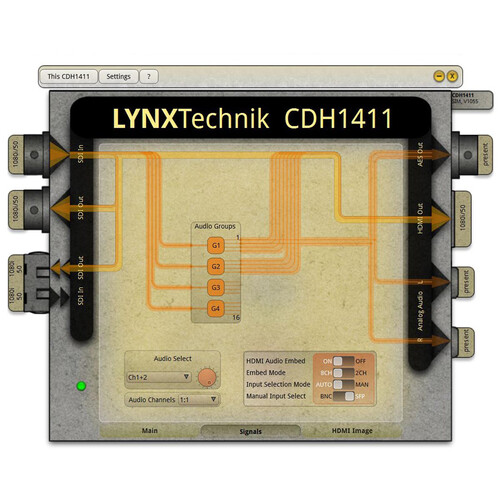

For monitoring applications, the converter features H/V delay to show blanking interval and incorporates the ability to burn-in timecode, 16-channel audio level metering, and other data as well as generate safe area makers. Many of the settings can be accessed directly from the device itself using dip switches, and more advanced settings can be configured on a Mac or Windows computer using the yellowGUI utility software. A USB cable is included to connect to the computer.

Key Features
Support for SDI video inputs up to 12 Gb/s up to 2160p
Supports HDR and WCG indication at HDMI output
Automated detection of input signal color range via VPID information
3G-SDI Level A and Level B support
Automatic input standard and format detection
Fiber input and output options
HDMI video output with embedded audio
Analog and AES audio outputs
Selectable timecode burn-in and Metadata burn-in
CEA 708 Closed caption burn-in
16-channel on screen audio level meter
H/V delay and H flip and safe area markers
yelloGUI compatible with access to additional features
SKU: CDH 1411 Category: Tag:
Inputs / Outputs
Video Inputs
1x BNC (12G-SDI) Female
Audio Inputs
No
Video Outputs
1x HDMI (2.0b) Female
Audio Outputs
2x 1/8″ / 3.5 mm TS Mono Analog Female
1x BNC AES/EBU Female
Other I/O
1x Mini-USB Firmware Input
Expansion Slots
2x SFP Slot
Format Support
Input Video Format
SDI
UHD 4K
Output Video Format
HDMI
UHD 4K
Embedded Audio
HDMI/SDI
Standards
Video Standard Compliance
SMPTE 292M/424M/425M/ST-2081/ST-2082
HDR Support
Not Specified by Manufacturer
Hardware
Wireless
No
Power
Power I/O
1x Barrel (10 to 24 VDC ) Input
Power Consumption
Device: 12 VDC (8.7 W)
Environmental
Operating Temperature
37 to 72°F / 5 to 40°C
Operating Humidity
0 to 90%
General
Dimensions
5.5 x 3.5 x 0.9″ / 140 x 90 x 22 mm
Weight
8.1 oz / 230 g
Packaging Info
Package Weight
1.67 lb
Box Dimensions (LxWxH)
10.3 x 8.9 x 3.8″
