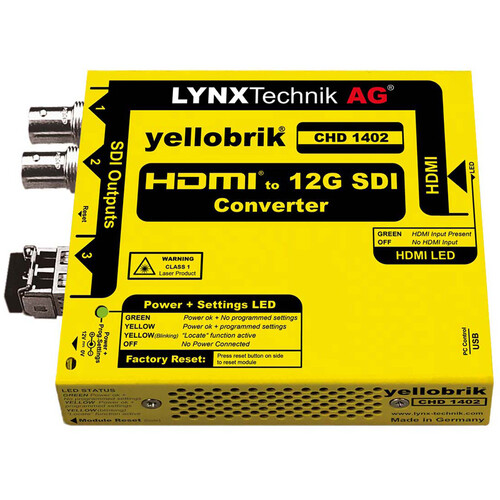

Lynx Technik AG yellobrik CHD 1402 HDMI to 12G-SDI Converter

Add to Wishlist
Key Features
  • 1 x HDMI Input
  • 2 x 12G-SDI Output
  • UHD 4K60 Video In/Out
  • 8-Channel Embedded Audio
  • HDMI Indicator LED
  • Compatible with Lynx Technik Software

AED4,099.00

Add to Wishlist

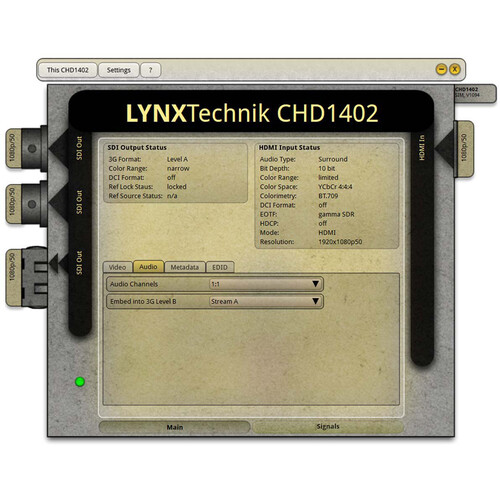

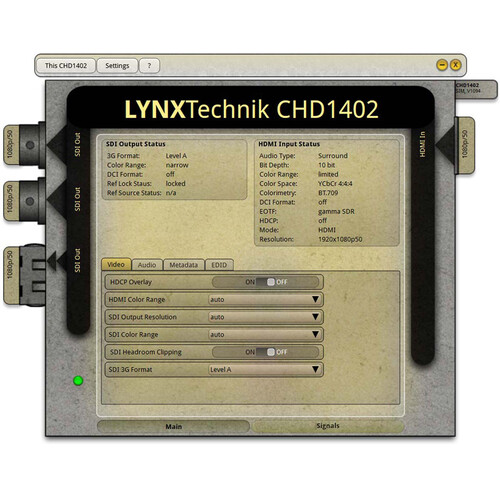

The Lynx Technik AG yellobrik CHD 1402 HDMI to 12G-SDI Converter is a professional video signal converter solution for delivering broadcast-quality video over dual 12G-SDI outputs from HDMI inputs. The converter is compact and reliable, accepting and delivering up to 4K60 video streams with 8-channel embedded audio. This module is also compatible with yelloGUI or LynxCentraal control software, enabling access to a whole host of additional settings.

SKU: CHD 1402 Category: Tag:
Inputs / Outputs
Inputs/Outputs
1x HDMI (2.0b | 8-Channel) Female
1x SFP Cage
2x BNC (12G-SDI)
Video Inputs
1x HDMI (2.0b) Female
Audio Inputs
No
Video Outputs
2x BNC (12G-SDI) Female
Audio Outputs
No
Expansion Slots
No
Format Support
Input Video Format
HDMI
UHD 4K 60 fps
Output Video Format
SDI
UHD 4K 60 fps
Embedded Audio
HDMI/SDI Input: 8-Channel
HDMI/SDI Output: 8-Channel
Standards
Video Standard Compliance
SMPTE 259M/292M/424M/ST-2081-1/ST-2082-1
HDCP Support
No
HDR Support
Not Specified by Manufacturer
Hardware
Wireless
No
Power
Power I/O
1x Barrel (10 to 24 VDC ) Input
Power Consumption
Device: 12 VDC at 9.3 A
Environmental
Operating Temperature
41 to 104°F / 5 to 40°C
Operating Humidity
90% ()
General
Dimensions
4.8 x 3.5 x 0.9″ / 123 x 90 x 22 mm
Weight
6.56 oz / 186 g
Packaging Info
Package Weight
1.565 lb
Box Dimensions (LxWxH)
11.2 x 8.9 x 3.8″
