Magenta Research Voyager CF-HDMI-TX2 Two-Port Compact Format HDMI/DVI Transmitter Card with HDCP

Add to Wishlist

AED4,199.00

Add to Wishlist

Magenta Research CF-HDMI-TX2Ā Overview

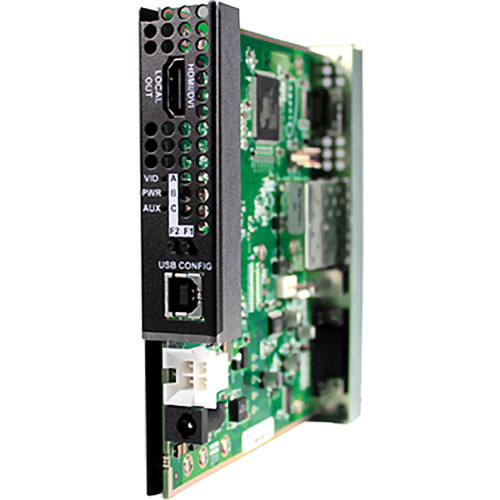

TheĀ Magenta Research Voyager CF-HDMI-TX2 Transmitter CardĀ is used with the Voyager CF-18 Chassis, and serves as a starting point for the extension and distribution of video (HDMI with HDCP or DVI), audio, and serial signals over a fiber-optic cable (sold separately). It can send 1920 x 1200 resolution uncompressed video (either HDMI w HDCP or DVI) plus audio and serial signals over a distance of up to 6,600ā€™ via a multi-mode fiber optic cable. Its range can be extended to up to 2.5 mi (4km) or 18.6 mi (30km) by using single-mode fiber optic modules (sold separately).

This transmitter card comes with one multi-mode fiber SFP standard module and features a second port that, when populated with a second SFP, introduces a variety of signal distribution options. For example, users could cascade signals to a second transmitter or feed a second grouping of receivers (which can be daisy chained).

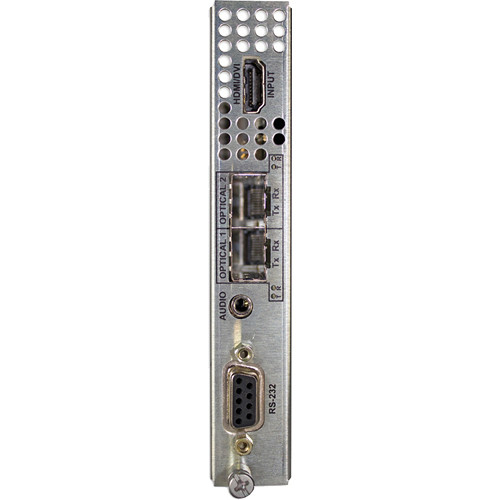

Two duplex fiber output ports
Uncompressed multi-format video at 1920 x 1200 resolution
Transmission range of up to 18.6 mi (30km) depending on the receiver
Single-mode and multi-mode fiber support
Advanced EDID management and HDCP compliance
Local HDMI output
Video Output Formats: The local port is essentially a direct copy of the video input port. However, the output video color-space is always RGB regardless of the input video color-space
Recognizes all 8 channels (if present) of embedded HDMI audio and passes them through the system to the receiver
Supports EDID/DDC connections on the HDMI connectors
SKU: 2211107-01 Category: Tag:

Magenta Research CF-HDMI-TX2Ā Specs

Video
Maximum Resolution 1080p, 1920 x 1200
Color Depth Maximum: 24 bits/pixel (8 bits/color)
Refresh Rate Maximum: 60 Hz @ 1920 x 1200
Serial Interface
Serial Interface RS232 standard serial interface, reflects DCE pinout standard
Signal TXD, RXD, RTS, CTS, DSR, DTR, DCD, and RI
Speeds 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400 Baud
Format 8 data; 1 or 2 stop bits, no parity bit
Flow Control Hardware and software flow-control, configurable on/off
Connector DB9 female, with 4-40 standoffs
Audio
Audio Interface Discrete left and right line-level audio
Audio Input When used with VG-TX2 CORE:
Input Voltage: 2 V peak-to-peak, maximum
Input Impedance: ā‰„10 kĪ©
Input Coupling: AC (capacitive)
Input Sample Rate: 48 kHz
Input Frequency Response: 20 to 20 kHz at -3 dB
Audio Output When used with VG-RX CORE:
Output Voltage: 2 V peak-to-peak, maximum
Output Impedance: ā‰¤100 Ī©
Output Coupling: AC (capacitive)
Output Sample Rate: 48 kHz
Output Frequency Response: 20 to 20 kHz at -3 dB
Connector: 3.5 mm (1/8″) stereo-phono type jack
General
Input/Output Input: 1 x HDMI
Output: 1 x HDMI
Environmental Operating Temperature: 32 to 104Ā°F (0 to 40Ā°C)
Storage Temperature: -4 to 140Ā°F (-20 to 60Ā°C)
Humidity: 80% RH, non-condensing
Enclosure Steel
MTBF 100,000 hours
Power +5 VDC, Consumption: 5 W maximum
Version HDMI version 1.3b
HDCP version 1.1; Classification: HDCP repeater device
Dimensions 0.8 x 6.0 x 5.0″ (2.2 x 15.2 x 14.0 cm)
Weight 1.4 lb (0.6 kg)
