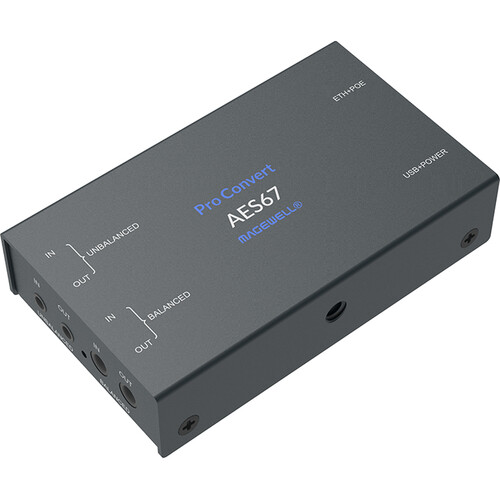

Magewell Pro Convert AES67 Multi-Format Bidirectional Analog/IP Audio Converter

Add to Wishlist
Key Features
  • Transcode Analog to IP Audio
  • Balanced and Unbalanced Audio In/Out
  • Supports AE67, NDI, SRT, and More
  • 3.5 and 4.4mm I/O with XLR Cables
  • UAC Support via USB-B

AED1,899.00

Add to Wishlist

Encode or decode analog audio between a 3.5mm or XLR input and AES67 multicast streams with this Pro Convert AES67 Multi-Format Bidirectional Analog/IP Audio Converter from Magewell. The converter features 2-channel 3.5mm unbalanced input and output, and 2-channel 4.4mm balanced input and output. An RJ45 Ethernet port transmits or receives up to 8-channel AES67 encoded multicast and unicast encoded streams and 4-channel 24-bit streams for use with Icecast, SRT, or NDI streaming.

The converter can also output UAC audio via the USB-B port for use with applications that support UAC. The included XLR cable adapters plug into the 4.4mm ports to connect a variety of XLR sources and destinations. You can configure and control the converter using an easy-to-use WebUI or by using Magewell Cloud.

Key Features
Offers a seamless bridge between analog audio, software, and IP standards, including AES67, NDI, SRT, and more
Provides a flexible, virtual audio matrix to allow routing or mixing of any analog or IP-based input channel to any output
Enables mixed-technology local and remote production workflows and ProAV installations
SKU: 64240 Category: Tag:

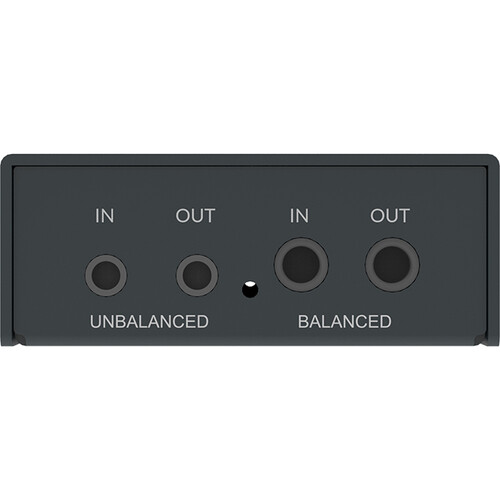

Audio Inputs
1x 4.4mm TRRRS Stereo Analog Female
1x 1/8″ / 3.5 mm TRS Stereo Analog Female
Audio Outputs
1x 1/8″ / 3.5 mm TRS Stereo Analog
1x 4.4mm TRRRS Stereo Analog

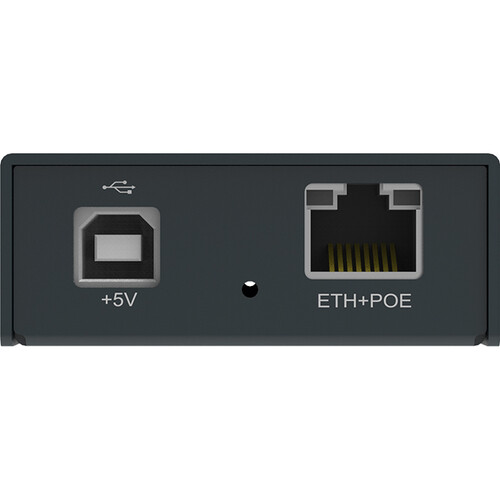

Other I/O
1x RJ45 LAN Input/Output
Latency
0 to 10,000 ms
Input Audio Format
Analog
Output Audio Format
Analog
Power
Power I/O
1x USB-B (5 VDC up to 1 A) Input
PoE Support
PoE 802.3af
Power Consumption
Device: 5 W
Environmental
Operating Temperature
32 to 72°F / 0 to 40°C
Storage Temperature
-4 to 158°F / -20 to 70°C
Operating Humidity
5 to 90%
General
Dimensions
4 x 2.4 x 0.9″ / 100.9 x 60.2 x 23.3 mm
Packaging Info
Package Weight
1.605 lb
Box Dimensions (LxWxH)
10.8 x 6.1 x 2.5″
