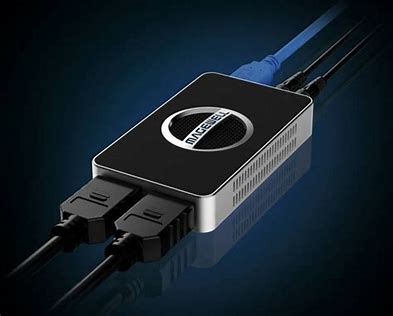

Magewell USB Capture HDMI 4K Plus – Video capture adapter – USB 3.0

Input Interface & Loop-through Interface

• One HDMI input + embedded audio
• One HDMI loop-through
• Support input & loop-through resolution up to 4096×2160 pixels (Support 2560x1440p144) Audio Input/Output Interface
• 3.5mm audio jack for microphone/ headphones
  Host InterfaceUSB 3.0, compatible with USB 2.0

• Windows, Linux, Mac, Chrome OS

• Support capture resolutions up to 3840x2160p30 or 1920x1080p90
• Capture 2-channel embedded audio or analog audio via 3.5mm microphone interface
• Capture 2-channel embedded audio and unbalanced analog audio

Actual frame rate can be limited by the host and resolution

• USB Capture Utility, Capture Express, etc.

• Zoom Rooms, Microsoft Teams Rooms, Skype for Business, Google Hangouts, GoToMeeting, VLC, OBS Studio, XSplit, etc.

• Auto detection of input signal format
• Integrate the functions of a USB audio card. Playback audio via 3.5mm headphones interface
• Windows, Linux and Mac SDK
• Continuously work for 24hx7
• LED status indicator
• 3-year warranty
