MagiCue MAQ-MAX-HS101A Maxim HDMI to SDI Converter with SRC Function

Add to Wishlist

1,199.00 د.إ

Add to Wishlist

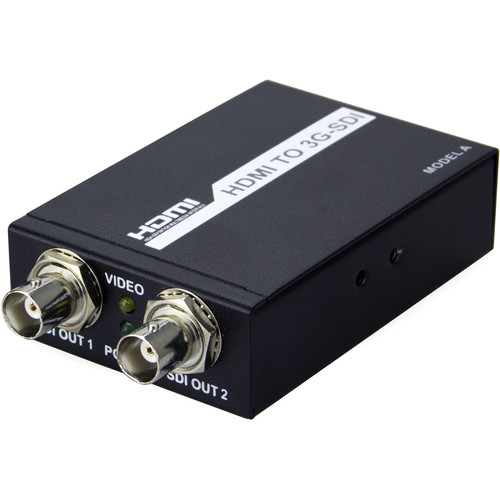

The MagiCue MAQ-MAX-HS101A Maxim HDMI to 3G/HD SDI Converter converts an HDMI signal into a 3G/HD-SDI signal, supporting a maximum of 8-channel HDMI embedded audio outputs. This converter has one HDMI input port and two 3G/HD-SDI outputs. It is suitable for connecting HDMI cameras and other HDMI video sources to SDI video recorders or monitors.

HDMI 1.3a input, 3G/HD-SDI output
Full 10-bit color converting
Supports up to 8-channel HDMI embedded audio
SRC function is optional; it supports any frequency HDMI audio input
SDIPLL clock filter, low-jitter 3G-SDI output
HDCP 1.2 local decoding via HDMI
Power and video indicators
Industrial metal case easy to install (sold separately)
SKU: MAQ-MAX-HS101A Category: Tag:
Interface
Input: 1 x HDMI Type-A, female Output: 2 x SDI via BNC, female
Video Formats
Input: HDMI v1.3a, 30/36 bits per pixel,RGB or YUV
SD, HD, 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p23.98/24/25/29.9/30/50/59.94/60

Output: 3G, HD, and SD-SDI (auto-selected)
SMPTE-259/274/292/296/372/424/425
Audio Formats
Input: HDMI embedded audio, 24-bit/48 kHz or any frequency HDMI audio input (SRC function), 8 channels maximum

Output: SDI embedded audio, 24-bit/48 kHz, 8 channels maximum
Indicators
Power: Green
Video Link: Yellow
Power Consumption
< 1.85 W
Power Input
5 VDC
Temperature
Operating: 32 to 104°F (0 to 40°C)
Storage: -4 to 140°F (-20 to 60°C)
Compliance
FCC; CE
Dimensions
3.2 x 2.1 x 1.1″ (82 x 55 x 30 mm)
Weight
0.33 lb (0.15 kg)
