Marshall Electronics AR-DM61-BT-64DT Rackmount Multichannel Digital Audio Monitor with 64-Channel Dante Module

The Marshall Electronics AR-DM61-BT-64DT is an active, multichannel rackmount digital audio monitoring system in a 1-RU chassis featuring a 10″ LCD touchscreen. This configuration includes a pre-installed 64-channel Dante module for digital audio networking. The system is ready for installation in tight spaces in TV stations, broadcast trucks, house-of-worship facilities, and transfer stations where powerful monitoring is required.

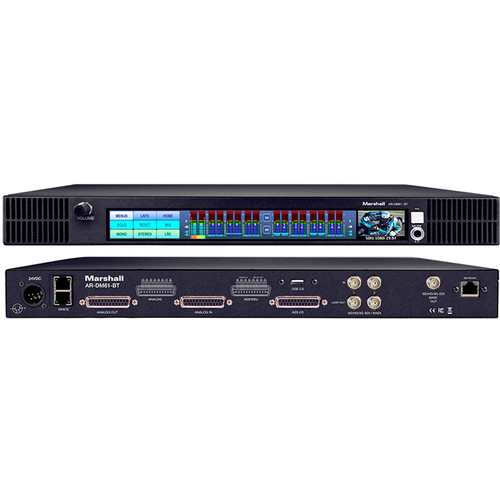

The front panel features high-powered stereo speakers, capable of 100 dB output levels, along with a 1/4″ headphone jack, volume control, and the full-color LCD touchscreen. The touchscreen displays up to 64 channels vertically or can be switched to 96-step, high-precision horizontal bars; it also offers a live video preview monitor.

On the back of the AR-DM61-BT-64DT are two dedicated, MADI-compatible 3G-SDI inputs with loop-through, four AES stereo inputs and outputs on D-sub connectors as well as eight analog inputs and outputs on D-sub connectors. Two RJ45 ports support Ethernet networking. The included 64-channel Dante module adds two additional RJ45 ports for Dante A&B networks.

A 24 VDC universal power supply is included.
