Marshall Electronics AR-DM61-BT-DB Rackmount Multichannel Digital Audio Monitor with Dolby Module

Add to Wishlist
Key Features
  • Powerful 1-RU Monitor System
  • Full-Color Touchscreen
  • 96-Step Metering, 64-Channel Audio Bars
  • Built-In Dolby Decoder Module

AED24,499.00

Add to Wishlist

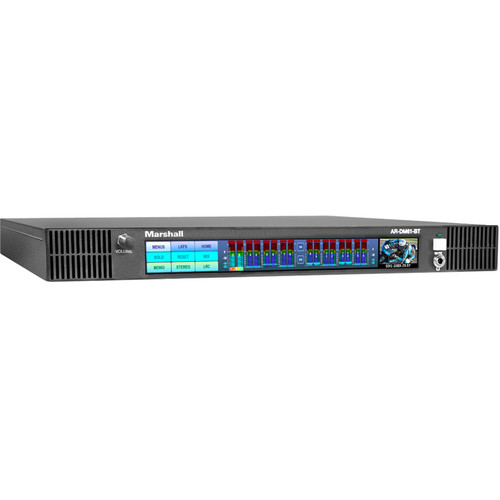

The Marshall Electronics AR-DM61-BT-DB is an active, multichannel rackmount digital audio monitoring system in a 1-RU chassis featuring a 10″ LCD touchscreen. This configuration includes a pre-installed Dolby CAT 1100 decoder module; this allows you to hear Dolby encoded audio on either SDI or AES inputs. The system is ready for installation in tight spaces in TV stations, broadcast trucks, house-of-worship facilities, and transfer stations where powerful monitoring is required.

The front panel features high-powered stereo speakers, capable of 100 dB output levels along with a 1/4″ headphone jack, volume control, and the full-color LCD touchscreen. The touchscreen displays up to 64 channels vertically or can be switched to 96-step, high-precision horizontal bars; it also offers a live video preview monitor.

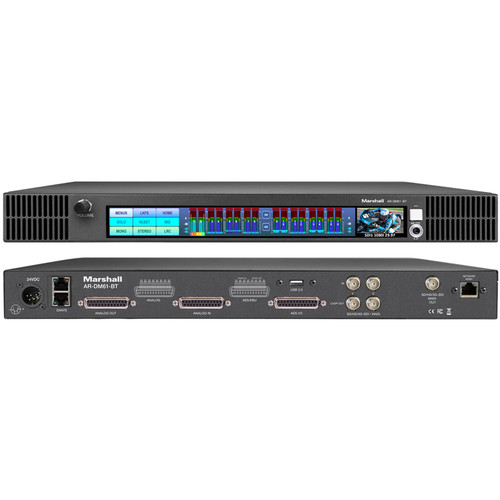

On the back of the AR-DM61-BT-DB are two dedicated, MADI-compatible 3G-SDI inputs with loop-through, four AES stereo inputs and outputs on D-sub connectors as well as eight analog inputs and outputs on D-sub connectors. Two RJ45 ports support Ethernet networking, and a 24 VDC universal power supply is included.

  • 10″ LCD Intuitive Touchscreen Panel displays up to 64 channels in vertical or 2 detailed channels in horizontal display
  • Built-in Dolby Decoder card displays channels with Dolby encoded audio
  • The decoder module also permits listening to the Dolby encoded audio, when the tracks are selected
  • All normal listening selections such as Mono, Stereo, LRC, MIX, etc. can be applied to Dolby decoded audio
  • LKFS display mode averages all channels in the current mix
  • Built-in live preview monitor for SDI inputs
  • Accepts inputs from multiple signal types
  • High-powered stereo speakers (up to 100 dB output)
  • Push-to-mute functionality
  • Two dedicated 3GSDI inputs with loop-through (MADI compatible)
  • 4 AES stereo inputs (8 channels) and outputs on 25-pin DSub connectors
  • 8 analog inputs and outputs on 25-pin DSub connectors
SKU: ARDM61-BT-DB Category: Tag:
Video Input Connectors
2 x 3G-SDI with Looping Outputs
Video Format Support
SDI up to 1080p 50, 59.94, 60
Audio Input Connectors
16 x SDI Embedded Channels (Two Inputs)
8 x Balanced Analog Channels via 25-Pin DSub (Tascam Format)
8 x AES/EBU Digital Channels via 25-Pin DSub (Tascam Format)
MADI 64 Channels (Auto Selected if Present on Either SDI Input)
Audio Output Connectors
8 x AES/EBU Channels via 25-Pin DSub (Tascam Format)
8 x Balanced Analog Channels via 25-Pin DSub (Tascam Format)
USB
2.0 (for Test/Service)
Network Connections
1 x Ethernet 100 Base-T, Supports DHCP or Fixed Addressing
Dante Connection
2 x 1 Gigabit Ethernet
Supports Dual A/B Network Operation
Power Supply
120 to 240 VAC, 50/60 Hz
24 VDC, 6.25 A, 4-Pin XLR Connector (Included)
Power Consumption
20 W (Typical)
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Humidity
20 to 90% (No Condensation)
Dimensions
1.75 x 17.36 x 14.3″ / 4.45 x 44 x 36.3 cm
Weight
8.8 lb / 4 kg
Packaging Info
Package Weight
13.185 lb
Box Dimensions (LxWxH)
21.6 x 19.1 x 6.9″
