Marshall Electronics High Zoom Video Microscope Lens V-VML0224A

Availability:

10 in stock
Add to Wishlist

AED1,699.00

10 in stock

Add to Wishlist

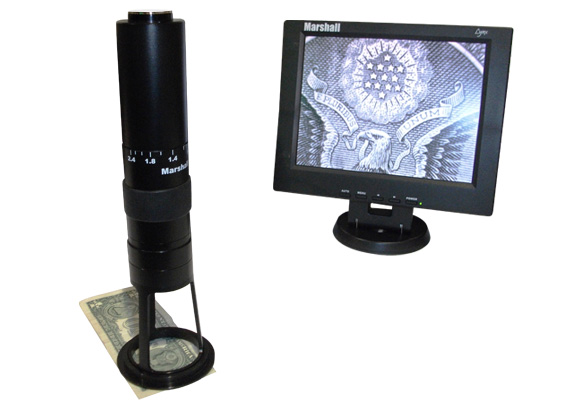

Marshall Electronics High Zoom Video Microscope Lens



The Marshall Electronics High Zoom Video Microscope Lens offers 12x zoom ratio and a field line from 30mm up to 2.5mm. Featuring video microscope lens technology and continuously adjustable magnification power, the lens offers enhanced operability for use at industrial, electronics, food processing, material Quality Assurance, and forensics to analyze large numbers of traces. In conjunction with CS-mount video cameras, the lens can be used for image monitoring or direct visual observation with the included eyepiece.

12x zoom ratio
Field line from 30mm up to 2.5mm
Video microscope lens technology
Continuously adjustable magnification power
Enhanced operability for use at industrial, electronics, food processing, material Quality Assurance, and forensics to analyze large numbers of traces
Can be used for image monitoring or direct visual observation with the included eyepiece
SKU: V-VML0224A Category: Tags: , , , ,

Marshall Electronics V-VML0224A Specs

Camera Format 1/3″ image sensor; CS-mount
Magnification Range 0.2 – 2.4 continuously adjustable
Field of View 30 – 2.5 mm
Working Distance 100 mm (3.93″)
Aperture NA = 0.015-0.1
Dimensions (Diam. x L) 46 x 267 mm (1.8 x 10.5″)
Packaging Info
Package Weight 0.7 lb
Box Dimensions (LxWxH) 12.0 x 12.0 x 6.0″
