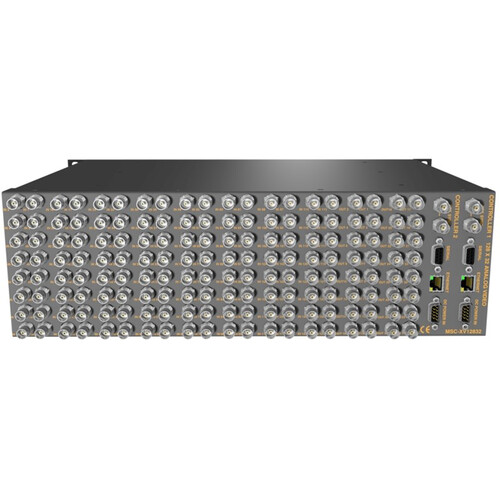

Matrix Switch 128 Input x 32 Output Crosslink Composite Analog Video Router with Status Panel

The 128 Input x 32 Output Crosslink Composite Analog Video Router with Status Panel from Matrix Switch is an analog video routing switcher with 128 BNC inputs and 32 BNC outputs that employs Crosslink technology, which eliminates performance degradation resulting from input buffers and output combiners in XY two-dimensional designs. Crosslink allows different modules in its line to be interconnected and to switch inputs to multiple outputs without disrupting any other paths within the system, as all stages of the system are identical.

Selecting input and output routing may be done via RS-232 control, using an optional controller, or the Ethernet web GUI ports, which will show users a conventional, two-dimension path search, and provide access to system software updates. Users have multiple BNC ports for employing tri-level sync or NTSC/PAL black burst, and they can also store and recall up to 10 presets on the system. Two power ports are included, with of one these intended for optional, redundant power support.
