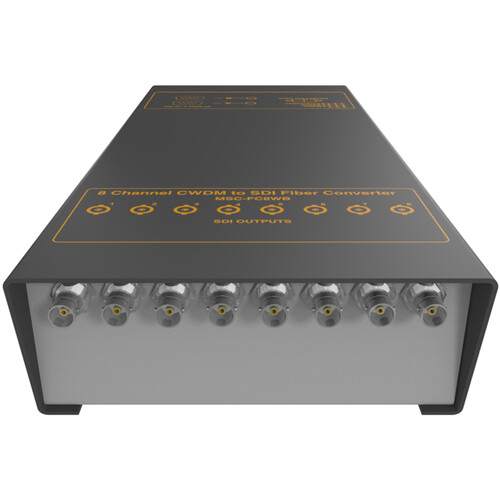

Matrix Switch MSC-FC8WB-8 8-Channel 3G-SDI CWDM Fiber to BNC Converter

Add to Wishlist
Key Features
  • 1 x 8-Channel CWDM Fiber Input
  • 8 x 12G-SDI BNC Outputs
  • Supports SD, HD & 2K Signals
  • 8 x Installed LC CWDM Receiver Modules
  • Auto Bypass of Non-Standard SDI Rates
  • Passes Embedded Audio & Ancillary Data
  • Up to 12 Mile Range
  • Passes Embedded Audio & Ancillary Data

35,699.00 د.إ

Add to Wishlist

The MSC-FC8WB-8 8-Channel 3G-SDI CWDM Fiber to BNC Converter from Matrix Switch can be used to transmit up to eight channels of SDI signals via a single CWDM LC fiber cable at distances up to 12 miles. This converter incorporates eight factory installed CWDM receiver modules and includes an external power supply.

CWDM Receivers
The MSC-FC8WB-8 converter includes eight MSC-SFPRX-W factory installed CWDM receiver modules.
Long Range
Transmits using a single fiber cable at distances up to 12 miles.
Pass Through
This converter passes SDI embedded audio and ancillary data.
SKU: MSC-FC8WB-8 Category: Tag:
Inputs / Outputs
Video Inputs
1x LC Fiber Female
Audio Inputs
No
Video Outputs
8x BNC (3G-SDI) Female
Audio Outputs
No
Expansion Slots
No
Format Support
Output Video Format
SDI (10-Bit 4:4:4/4:2:2 RGB, YUV)
2048 x 1556 at 23.98/24/25 fps
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF at 23.98/24/25/29.97/30 fps
1080i at 50/59.94/60 fps
720p at 23.98/24/25/29.97/30/50/59.94/60 fps
576i / 625 lines at 25 fps
480i / 525 lines at 29.97 fps
Output Audio Format
S/PDIF: 48 kHz / 24-Bit
Embedded Audio
SDI
Standards
Video Standard Compliance
SMPTE 259M/292M/296M/310M/425M-A/425M-B/297-2006
ITU -R BT.601/BT.656
HDR Support
Not Specified by Manufacturer
Power
Power I/O
2x DE-9 Input
Environmental
Operating Temperature
32 to 102°F / 0 to 70°C
Storage Temperature
14 to 194°F / -10 to 90°C
General
Certifications
FCC, UL, CE, RoHS
Dimensions
13 x 6 x 2.5″ / 33 x 15.2 x 6.3 cm
Weight
5 lb / 2.3 kg
