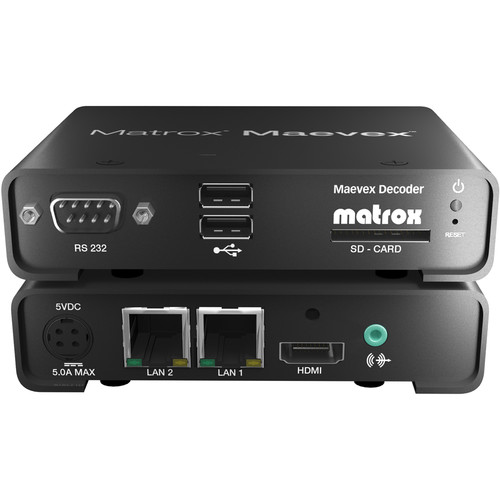

Matrox MVX-D5150F Maevex H.264 Decoder

Add to Wishlist

AED2,799.00

Add to Wishlist

The Matrox MVX-D5150F Maevex H.264 Decoder allows you to decode video and audio over a standard IP network at a user-defined bit rate. It records high-quality video and audio and uses the H.264 video compression standard. The decoder can playback to Maevex encoder or any device or PC that supports the required network protocols.

Matrox’s PowerStream software is included and is used to remotely discover, manage, and adjust the Maevex network. The software also allows the administrators to define multiple stream parameters and balance network bandwidth consumption and quality. The Maevex API is also available to enable programmers to integrate current features into existing applications or create new, independent PowerStream-like software to meet specific needs.

Decoding
  • Decodes up 1080p and 1920 x 1200 video as well as audio
  • H.264 compression
  • Support for widescreen and standard aspect ratio at multiple resolution
  • De-scales streams before playback
  • HDMI or analog audio support
  • Plays up to 1080p/1920 x 1200 to NAS or shared network drive
Network Management
  • Operates on standard 100/1000 Mb Ethernet networks
  • Auto-detect and discover Maevex units on subnet (DHCP server required)
  • Full/half-duplex mode and static IP address support
  • CBR, VBR support
  • Network bit-rate control (100 kbps to 25 Mbps)
Failsafe
  • Plays back pre-recorded content at the decoder in case of a network or streaming disruption
  • Programmable time delay before failsafe activates
PowerStream Control Software
  • Remotely manage Maevex network from different locations
  • Conveniently access IP address, bit rate, and other information
  • Fine-tune decoding parameters and adjust bit rates
  • Scale and crop content to fit different outputs
Maevex API
  • Integrate Maevex features in existing or new control software
  • Based on easy-to-use .NET programming language
  • Provided to select developers (determined on case-by-case basis; NDA may be required)
Other Features
  • Supports daisy-chaining and extends network via integrated network switch
  • Failure resilience – power, network, and device auto-recovery features
  • Full duplex RS-232 control
  • PowerStream-controlled user access from secured PC
  • Detailed LED indicators for easy and effective troubleshooting
  • Customizable bitmap for decoder splash screen
Applications
  • Healthcare
  • Automation/production
  • Education and training
  • Security
  • Banking
  • Transportation
  • Dynamic digital signage
SKU: MVX-D5150F Category: Tag:
Network Connectors
2 x RJ45 (fully switched)
Video Output
HDMI with digital L-PCM audio
Supports resolution up to 1920×1200
ProcAmp Control: Contrast, brightness, saturation, hue
Supports destination cropping
Independent failsafe output
Audio Line Out
3.5 mm analog stereo audio
Decoding
Video
Single-Channel HD: Up to 1920 x 1080p (60 Hz) and 1920 x 1200 (56 Hz)
Compression Standard: H.264/MPEG4 Part 10 (AVC)
Profiles: Baseline, main, high
Levels: Up to 4.2
Bit Rates: 100 kbps to 25 Mbps
Rate Control: CBR, VBR, favor speed, favor quality, adjustable GOP (group of pictures) size

Audio
Compression Standard: MPEG4 AAC-LC
Channels: 2-channel (stereo), HDMI with digital L-PCM audio
Analog Sample Frequency: 32, 44.1, and 48 kHz
Bit Rates: 96, 128, 192, and 256 kbps
Networking Interface
100/1000base-T Ethernet: 1000 Mbps full duplex, 100 Mbps half/full duplex
Streaming Protocols: RTSP/RTP/RTCP (all required) over UDP
Command & Control Protocols: HTTP/HTTPS
IPV4 Support
Unicast, Multicast, and Multi Unicast
DHCP (Default) / Fixed IP Address support
Cat 5-or-higher network cable support
CMS
Central Command and Control Application:
Resides on any PC network node
Maevex network configuration & control
Decoding control and manipulation
Frame rate and resolution control
Password protection
Failsafe over the network FW updates
Recording (up to 1080p60)
Full duplex RS-232 (point to point) communication
Full-feature API available
OS Support
Windows 8 & 8.1 (32-bit, 64-bit)
Windows Server 2012 & 2012 R2 (64-bit)
Windows 7 (32-bit, 64-bit)
Windows Server 2008 R2 (64-bit)
Power Supply
100 to 240 VAC In, 5 VDC Out, 15 W
DIN4 locking power connector
Power Cords/Adapters Included: US, EU, GB/HKG, AU/NZL
Regulatory
CE/FCC/VCCI/ICES/C-Tick/KCC Class B, ROHS/WEEE
Operating Temperature
32 to 113°F (0 to 45°C)
Non-Operating Temperature
-40 to 131°F (-40 to 55°C)
Operating Humidity
20 to 80% (non-condensing)
Non-Operating Humidity
5 to 95% (non-condensing)
Mean Time Between Failures (MTBF)
164.81 years @ 104°F (40°C) (excluding power supply)
External Power Supply: 11.45 years @ 77°F (25°C), full load
Fanless (no moving parts)
Dimensions
5.1 x 1.0 x 4.3″ (12.8 x 2.6 x 10.9 cm)
Weight
10 oz (286 g) (excluding external power supply and power cords)
Packaging Info
Package Weight
2.315 lb
Box Dimensions (LxWxH)
14.45 x 6.5 x 3.3″
