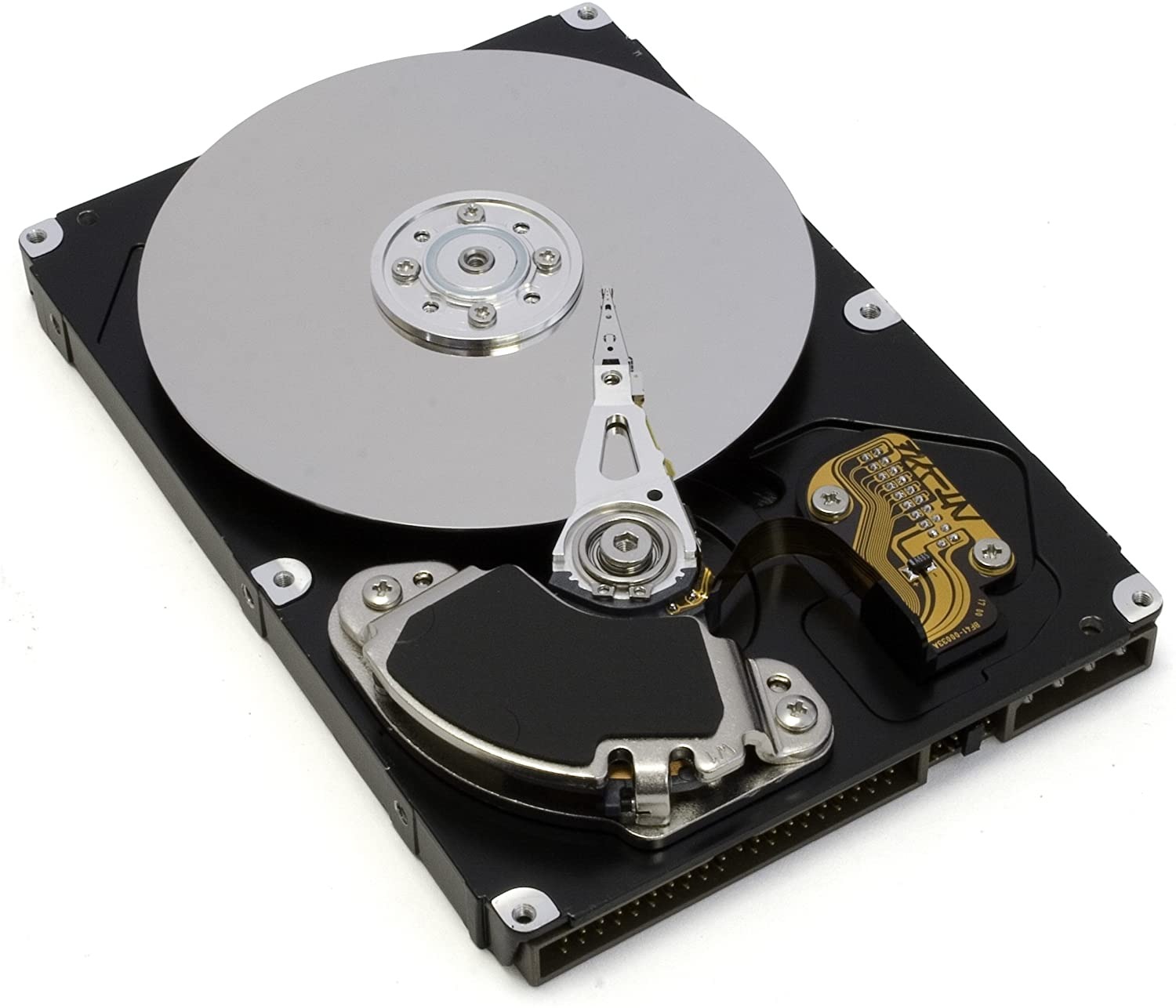

Maxtor Atlas 15K 18GB U320 80pin SCA-2 SCSI Hard Drive 8C018J0 – Brand New OEM
Maxtor Atlas 15K 18GB U320 80pin SCA-2 SCSI Hard Drive 8C018J0 – Brand New OEM
The Atlas® 15K drive provides seek times as fast as 3.2ms and maximum sustained data transfer rates up to 75MB/sec. The drive delivers up to 45% more IO/sec than average 10K RPM drives.
The Atlas 15K is designed for the most demanding high-performance and I/O-intensive applications, such as OLTP, enterprise servers, 3-D animation, high-performance workstations, data mining, and NAS and SAN environments.
DPN: 9X923 / 09X923
| Specifications | 18.4 GB | 36.7 GB | 73.4 GB |
| Formatted Capacity (GB) | 18.4 | 36.7 | 73.4 |
| Bytes per Sector | 512 | 512 | 512 |
| Interface Ultra 320 SCSI (Backwards compatible with Ultra160, Ultra2, Ultra SCSI) | |||
| Interface Connectors 68-pin WIDE and 80-pin SCA-2 | |||
| Average Read/Write (ms) | 3.2/3.6 | 3.2/3.6 | 3.4/3.8 |
| Track-to-Track Read/Write (ms) | 0.3/0.5 | 0.3/0.5 | 0.3/0.5 |
| Full stroke Read/Write (ms) | 8.0/9.0 | 8.0/9.0 | 8.0/9.0 |
| Maximum Sustained Transfer Rate (MB/sec) | 75 | 75 | 75 |
| Operating Temperature (°C) | 5 to 55 | 5 to 55 | 5 to 55 |
| Non-Condensing Humidity (%) | 8 to 95 | 8 to 95 | 8 to 95 |
| Non-Operating Temperature (°C) | -40 to 70 | -40 to 70 | -40 to 70 |
| Idle Power (W) | 7.2 | 9.4 | 11.8 |
| Width max (inches/mm) | 4/101.6 | 4/101.6 | 4/101.6 |
| Length max (inches/mm) | 5.787/147 | 5.787/147 | 5.787/147 |
| Height max (inches/mm) | 1.028/26.1 | 1.028/26.1 | 1.028/26.1 |
| Weight max (lb/kg) | 1.8/0.82 | 1.8/0.82 | 1.8/0.82 |
