Mellanox ConnectX-6 Dx MCX623106AC-CDAT – Crypto enabled

Add to Wishlist

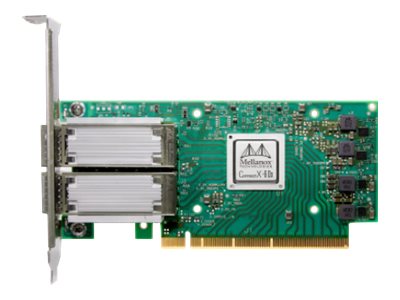

Mellanox ConnectX-6 Dx MCX623106AC-CDAT – Crypto enabled – network adapter – PCIe 4.0 x16 – 100 Gigabit QSFP56 x 2

8,499.00 د.إ

Add to Wishlist

Complex workloads demand ultra-fast processing of high-resolution simulations, extreme-size datasets, and highly-parallelized algorithms. As these computing requirements continue to grow, NVIDIA Quantum InfiniBand – fully offloadable, In-Network Computing acceleration technology – provides the dramatic leap in performance needed to achieve unmatched results in high performance computing (HPC), AI, and hyperscale cloud infrastructures – with less cost and complexity.

NVIDIA ConnectX-6 InfiniBand smart adapter cards are a key element in the NVIDIA Quantum InfiniBand platform. ConnectX-6 provides ports of 100 Gb/s Ethernet connectivity with extremely low latency, high message rate, smart offloads, and NVIDIA In-Network Computing acceleration that improve performance and scalability.

SKU: MCX623106AC-CDAT Category: Tag:
Category Specification
General
Device Type Network adapter
Form Factor Plug-in card
Interface (Bus) Type PCI Express 4.0 x16
PCI Specification Revision PCIe 1.1, PCIe 2.0, PCIe 3.0, PCIe 4.0
Networking
Ports 100 Gigabit QSFP56 x 2
Connectivity Technology Wired
Data Link Protocol 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 50 Gigabit Ethernet, 100 Gigabit Ethernet
Data Transfer Rate 100 Gbps
Network / Transport Protocol TCP/IP, UDP/IP, IPSec, SMB
Features Firewall protection, MPLS support, DoS attack prevention, firmware upgradable, Quality of Service (QoS), PXE support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), UEFI support, Single Root I/O Virtualization (SR-IOV), Energy Efficient Ethernet, Advanced Error Reporting (AER), checksum offload support, Extended Message-Signaled Interrupts (MSI-X), iSCSI remote boot, Ethernet remote boot, Transmit Side Scaling (TSS), RDMA over Converged Ethernet (RoCE), Network Controller Sideband Interface (NC-SI), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), Link Aggregation, TLP Processing Hint (TPH), Software Defined Networking (SDN), Message Signaled Interrupts (MSI), Data Plane Development Kit (DPDK), iSCSI Extensions over RDMA (iSER), VLAN Tagging, Accelerated Switching And Packet Processing (ASAP), MCTP over SMBus, Network Function Virtualization (NFV), GENEVE support, NVMe over Fabrics (NVMe-oF)
Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3bj, IEEE 802.3by, IEEE 802.3cd
Expansion / Connectivity
Interfaces 2 x 100Gb Ethernet – SFP56
Miscellaneous
Encryption Algorithm TLS, 256-bit AES-GCM, 128-bit AES-GCM, AES-XTS
