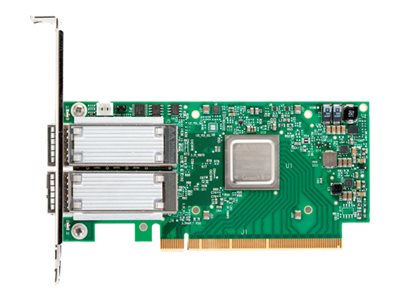

Mellanox ConnectX-6 HDR100 IB Dual-port x16 PCIe3.0 HCA – network adapter – PCIe 3.0 x16 – 100Gb Ethernet / 100Gb Infiniband QSFP28 x 2

Add to Wishlist

Mellanox ConnectX-6 HDR100 IB Dual-port x16 PCIe3.0 HCA – Network adapter – PCIe 3.0 x16 – 100Gb Ethernet / 100Gb Infiniband QSFP28 x 2 – for ThinkAgile VX2330 Appliance; VX3330 Appliance; VX3530-G Appliance; VX7330-N Appliance

11,799.00 د.إ

Add to Wishlist

The ThinkSystem Mellanox ConnectX-6 HDR100/100GbE VPI Adapters offer 100 Gb/s Ethernet and InfiniBand connectivity for high-performance connectivity when running HPC, cloud, storage and machine learning applications.

SKU: 4C57A14178 1 Category: Tag:
General
Device Type Network adapter
Form Factor Plug-in card
Interface (Bus) Type PCI Express 3.0 x16
PCI Specification Revision PCIe 1.1, PCIe 2.0, PCIe 3.0
Networking
Ports 100Gb Ethernet / 100Gb Infiniband QSFP28 x 2
Connectivity Technology Wired
Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet, 100 Gigabit InfiniBand
Data Transfer Rate 100 Gbps
Network / Transport Protocol TCP/IP, UDP/IP, iSCSI
Features Auto-negotiation, MPLS support, VLAN support, InfiniBand QDR Link support, VPI, QoS, InfiniBand DDR Link support, Jumbo Frames support, PXE support, LSO, LRO, RSS, UEFI support, InfiniBand FDR Link support, congestion control, AER, MSI-X, HDS, TSS, RoCE, InfiniBand EDR Link support, TPH, InfiniBand SDR Link support, XRC transport, DCT, UMR, ODP, MSI, InfiniBand HDR100 Link support
Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IBTA 1.3, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by
Expansion / Connectivity
Interfaces 2 x 100Gb Ethernet / 100Gb Infiniband – QSFP28
Miscellaneous Compliant Standards: RoHS
Software / System Requirements OS Required: FreeBSD, Microsoft Windows, Red Hat Enterprise Linux, CentOS
Dimensions & Weight Depth: 6.6 in<br>Height: 3.5 in
Compatibility Information Designed For: Lenovo ThinkAgile VX2330 Appliance 7Z62 ¦ Lenovo ThinkAgile VX3330 Appliance 7Z62 ¦ Lenovo ThinkAgile VX3331 7Z62 ¦ Lenovo ThinkAgile VX3530-G Appliance 7Z63 ¦ Lenovo ThinkAgile VX3575-G Integrated System 7D43 ¦ Lenovo ThinkAgile VX5530 Appliance 7Z63 ¦ Lenovo ThinkAgile VX5575 Integrated System 7D43 ¦ Lenovo ThinkAgile VX7330-N Appliance 7Z62 ¦ Lenovo ThinkAgile VX7530 Appliance 7Z63 ¦ Lenovo ThinkAgile VX7575 Integrated System 7D43 ¦ Lenovo ThinkAgile VX7576 Certified Node 7D43 ¦ Lenovo ThinkSystem SD530 7X21 ¦ Lenovo ThinkSystem SR630 7X01, 7X02 ¦ Lenovo ThinkSystem SR630 V2 7Z71 ¦ Lenovo ThinkSystem SR645 7D2X ¦ Lenovo ThinkSystem SR650 7X05, 7X06 ¦ Lenovo ThinkSystem SR650 V2 7D15, 7Z73 ¦ Lenovo ThinkSystem SR665 7D2V, 7D2W ¦ Lenovo ThinkSystem SR670 7Y37 ¦ Lenovo ThinkSystem SR670 V2 7Z23 ¦ Lenovo ThinkSystem SR850 7X18, 7X19 ¦ Lenovo ThinkSystem SR860 7X69, 7X70 ¦ Lenovo ThinkSystem SR950 7X11, 7X12, 7X13
