Network Adapters

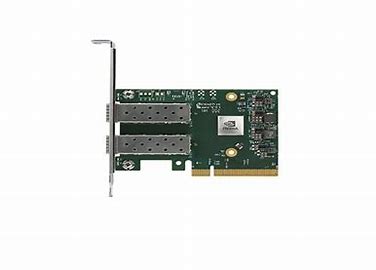

Mellanox ConnectX-6 Lx EN – Crypto enabled with Secure Boot – network adapter – PCIe 4.0 x8 – Gigabit Ethernet / 10Gb Ethernet / 25Gb Ethernet SFP28 x 2
Mellanox ConnectX-6 Lx EN – Crypto enabled with Secure Boot – network adapter – PCIe 4.0 x8 – Gigabit Ethernet / 10Gb Ethernet / 25Gb Ethernet SFP28 x 2
AED2,699.00
Providing up to two ports of 25 GbE or a single-port of 50 GbE connectivity, and PCIe Gen 3.0/4.0 x8 host connectivity, ConnectX-6 Lx is a member of NVIDIA’s world-class, award-winning ConnectX family of network adapters. Continuing NVIDIA’s consistent innovation in networking, ConnectX-6 Lx provides agility and efficiency at every scale. ConnectX-6 Lx delivers cutting edge 25GbE performance and security for uncompromising data centers.
| Category | Details |
|---|---|
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 4.0 x8 |
| PCI Specification Revision | PCIe 3.0, PCIe 4.0 |
| Networking | |
| Ports | Gigabit Ethernet / 10Gb Ethernet / 25Gb Ethernet SFP28 x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, UDP/IP, iSCSI |
| Features | NAT support, auto-negotiation, MPLS support, VLAN support, firmware upgradable, QoS, PXE support, LSO, LRO, RSS, UEFI support, SR-IOV, MSI-X, TSS, RoCE, NC-SI, VXLAN, NVGRE, DCT, MSI, iSCSI Extensions over RDMA (iSER), Jumbo Frames support (up to 9600 bytes), firmware root of trust, ASAP, MCTP over SMBus |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 1149.1, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3by, IEEE 1149.6, OCP 3.0 |
| Expansion / Connectivity | |
| Interfaces | 2 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet – SFP28 |
| Miscellaneous | |
| Included Accessories | Tall bracket |
| Dimensions & Weight | |
| Depth | 3.8 in |
| Height | 2.7 in |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 0 – 90% (non-condensing) |
