Mellanox Technologies Spectrum-2 Managed L2/L3 1U Black, SilverMellanox Technologies Spectrum-2 Managed L2/L3 1U Black, Silver

Add to Wishlist
32 x 100G Ethernet, 32 x QSFP28, 1U, C2P

AED137,399.00

Add to Wishlist

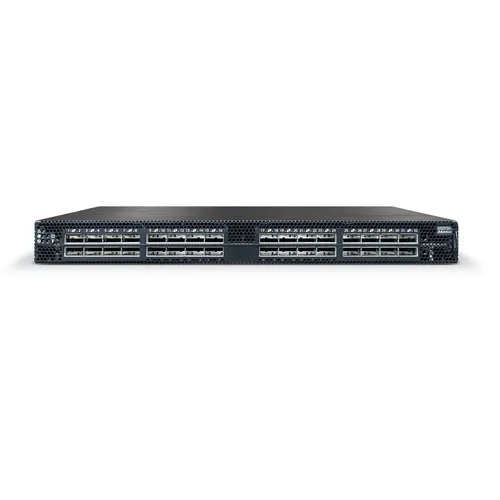

Mellanox SN3700C is a 1U 32-port 100GbE spine that can also be used as a high density 10/25GbE leaf when used with splitter cables. SN3700C allows for maximum flexibility, with ports spanning from 1GbE to 100GbE and port density that enables full rack connectivity to any server at any speed, and a variety of blocking ratios. SN3700C ports are fully splittable to up to 128 x 10/25GbE ports. Mellanox SN3700C is a 1U 32-port 100GbE spine that can also be used as a high density 10/25GbE leaf when used with splitter cables. SN3700C allows for maximum flexibility, with ports spanning from 1GbE to 100GbE and port density that enables full rack connectivity to any server at any speed, and a variety of blocking ratios. SN3700C ports are fully splittable to up to 128 x 10/25GbE ports.

SKU: MSN3700-CS2R Categories: , Tag:
Feature Details
Switch type Managed
Switch layer L2/L3
Quality of Service (QoS) support Y
Web-based management Y
Cloud-managed Y
Traffic shaping Y
Configuring Location Settings (CLI) Y
System event log Y
User operation log Y
Basic switching RJ-45 Ethernet ports quantity 32
Fiber optic connector QSFP28
QSFP28 ports quantity 32
USB 2.0 ports quantity 1
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3x
10G support Y
Port mirroring Y
Full duplex Y
IP routing Y
Policy-based routing Y
Flow control support Y
Link aggregation Y
Rate limiting Y
Auto MDI/MDI-X Y
Ethernet LAN data rates 10,100,480,800,1000,1200,2500,3000,5000,6000,10000,12000,16000,25000,40000,50000,100000 Mbit/s
Auto-negotiation Y
VLAN support Y
Switching optical modules type 100 Gigabit Ethernet
Switching capacity 6400 Gbit/s
Store-and-forward Y
Static route Y
Jumbo frames support Y
DHCP features DHCP client, DHCP server, DHCPv6 client, DHCPv6 server
Access Control List (ACL) Y
IGMP snooping Y
IGMP proxy Y
Security algorithms 802.1x RADIUS, SSH, SSL/TLS
MAC address filtering Y
Static port security Y
SSH/SSL support Y
Rack mounting Y
Form factor 1U
Product colour Black, Silver
Number of fans 4 fan(s)
Certification RoHS, CE, ICES, FCC, RCM, VCCI, CB, CE, cTUVus
Built-in processor Y
Internal memory 8129 MB
Flash memory 32768 MB
Buffer size 42000 KB
Fanless N
Power supply included Y
AC input voltage 100 – 264 V
AC input frequency 50/60 Hz
Input current 2.9 – 4.5 A
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -40 – 70 °C
Operating relative humidity (H-H) 5 – 85%
Operating altitude 0 – 3050 m
Width 559 mm
Depth 428 mm
Height 44 mm
Weight 11.1 kg
Ethernet LAN Y
Ethernet interface type 100 Gigabit Ethernet
