Meridian Technologies DR-1RG2A1D/1D-0 DigiView DVI/RGB Receiver with RS-232C Support

Add to Wishlist
Key Features
  • Up to 1600 x 1200 Resolution
  • 720p and 1080i
  • Fiber Optic
  • DVI/RGB
  • Real-Time Video Reception
  • RS-232C

7,899.90 د.إ

Add to Wishlist

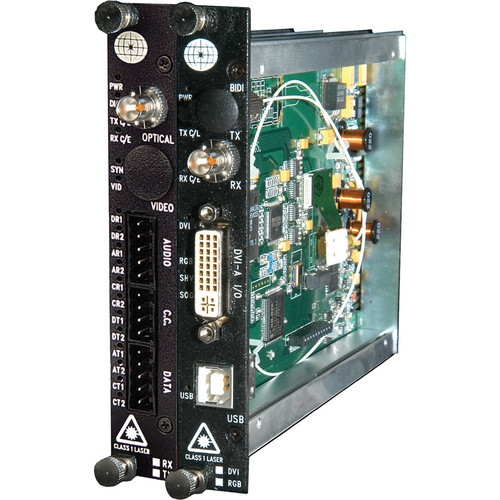

The Meridian Technologies DR-1RG2A1D/1D-0 DigiView DVI/RGB Receiver is a module designed to send both DVI and RGB signals over fiber optic cable. The module digitally encodes the data and can carry up to 2-channel of audio.

Meridian Technologies DR-1RG2A1D/1D-0 Overview

The Meridian Technologies DR-1RG2A1D/1D-0 DigiView DVI/RGB Receiver is a module designed to send both DVI and RGB signals over fiber optic cable. The module digitally encodes the data and can carry up to 2-channel of audio. The unit supports a wide variety of computer resolutions up to 1600 x 1200, as well as 720p and 1080i high definition. All in real-time the video requires no adjustments, equalization or deskewing during setup. The module is compatible with SpectraSmart software.

The unit comes equipped with RS-232C connectivity, giving it the capability of connecting to a wide variety of remote control devices. Additional devices include scanners, a computer mouse, or touch-screen display.
Receives digital transmission of DVI, RGBHV, RGsB over one multimode fiber.
2-channel 24-bit audio.
Supports VGA, SVGA, XGA, SXGA, and UXGA formats and HDTV resolutions of 480p, 720p, and 1080i.
H/V sync frequency range of 60-150Hz (vertical), 30-130kHz (horizontal).
Uses all-digital processing for crystal clear signals and no color skewing.
Real-time video reception for exceptional quality and resolution no video compression.
Requires no adjustments, equalization or deskewing during setup.
Data throughput in excess of 6 Gbps (uncompressed). Most systems have 1.25 Gbps throughput with significant compression.
DDC (Data Display Channel) optional.
Standard DVI-I video connector with dongle included for RGB interface.
USB interface for remote monitor adjustments.
Wide optical dynamic range, eliminating the need for optical attenuators.
Multimode laser based system.
SpectraSmart network management compatible.
SKU: DR-1RG2A1D/1D-0 Category: Tag:

Meridian Technologies DR-1RG2A1D/1D-0 Specs

General
Inputs/Outputs Receiver:
1 x DVI-IOutput
1 x DE-15/DB-15 (RGB)Output
1 x USB-B 2.0Output
1 x Block (Audio)Output
Supported Resolutions 1600 x 1200
640 x 480
Transmission Method Multimode Cable
Video Channel 1-Channel
Power
Power Consumption 7 W
Environmental
Operating Temperature 14 to 122°F / 10 to 50°C
Storage Temperature 67 to 185°F / 55 to 85°C
Physical
Status Monitoring LED Indicator
Dimensions 1.6 x 5.0 x 6.3″ / 4.0 x 12.7 x 16.0 cm
Weight 2.0 lb / 907.2 g
Packaging Info
Package Weight 2 lb
Box Dimensions (LxWxH) 10 x 7 x 3″
