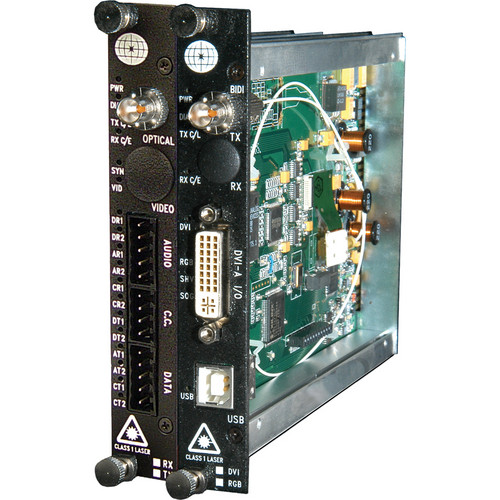

Meridian Technologies DT-1DV2A-0 DigiView DVI Transmitter

Add to Wishlist
Key Features
  • Supports Up to 1600 x 1200 & 1080i
  • DVI I/O
The Meridian Technologies DT-1DV2A-0 DigiView DVI Transmitter is a module designed to send DVI signals over fiber optic cable. The module digitally encodes the data and can carry up to 2 channels of audio. The unit supports a wide variety of computer resolutions up to 1600 x 1200, as well as 720p and 1080i high definition.

AED6,399.90

Add to Wishlist

Meridian Technologies DT-1DV2A-0 Overview

The Meridian Technologies DT-1DV2A-0 DigiView DVI Transmitter is a module designed to send DVI signals over fiber optic cable. The module digitally encodes the data and can carry up to 2 channels of audio. The unit supports a wide variety of computer resolutions up to 1600 x 1200, as well as 720p and 1080i high definition. All in real-time, the video requires no adjustments, equalization or deskewing during setup. The module is compatible with SpectraSmart network management system.

Digital transmission of DVI over one multimode fiber.
2-channel 24-bit audio.
It supports computer resolutions up to 1600 x 1200 and HDTV resolutions up to 1080i.
H/V sync frequency range of 60-150Hz (vertical), 30-130kHz (horizontal).
Uses all-digital processing for crystal clear signals and no color skewing.
Real-time video for exceptional quality and resolution no video compression.
Requires no adjustments, equalization or deskewing during setup.
Data throughput in excess of 6 Gbps (uncompressed). Most systems have 1.25 Gbps throughput with significant compression.
DDC (Data Display Channel) optional.
Standard DVI-I video connector.
USB interface for remote monitor adjustments.
Wide optical dynamic range, eliminating the need for optical attenuators.
Multimode laser based system.
SpectraSmart network management compatible.
SKU: DT-1DV2A-0 Category: Tag:

Meridian Technologies DT-1DV2A-0 Specs

General
Inputs/Outputs Transmitter:
1 x DVI-IInput
1 x USB-B 2.0Input
Supported Resolutions 1600 x 1200
640 x 480
Transmission Method Multimode Cable
Video Channel 1-Channel
Power
Power Consumption 7 W
Environmental
Operating Temperature 14 to 122°F / 10 to 50°C
Storage Temperature 67 to 185°F / 55 to 85°C
Physical
Status Monitoring LED Indicator
Dimensions 1.6 x 5.0 x 6.3″ / 4.0 x 12.7 x 16.0 cm
Weight 2.0 lb / 907.2 g
Packaging Info
Package Weight 2 lb
Box Dimensions (LxWxH) 10 x 7 x 3″
