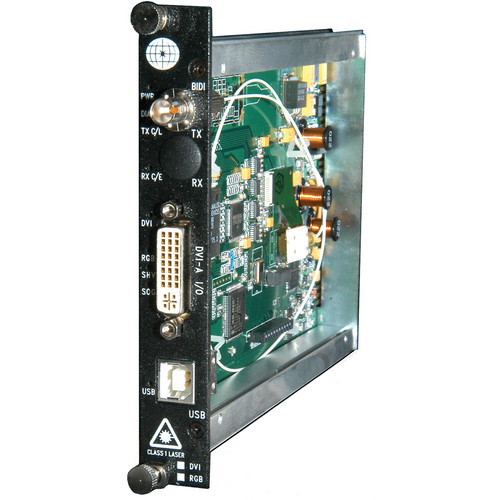

Meridian Technologies ST-1RG-0 Digitally Encoded DVI/RGB Fiber System Transmitter

Add to Wishlist
Key Features
  • Fiber Optic Transmitter
  • 2-Channel 24-Bit Audio
  • Real-Time Video Transmission
  • DVI Output
  • VGA/RGB

5,999.99 د.إ

Add to Wishlist

The Meridian Technologies ST-1RG-0 is a Digitally Encoded DVI/RGB Fiber System Transmitter. The card is designed to transmit DVI/RGB video signals, including 2-channel 24-bit audio, over fiber optic cable. Through the use of fiber optics, video signals can traverse large distances.

Meridian Technologies ST-1RG-0 Overview

The Meridian Technologies ST-1RG-0 is a Digitally Encoded DVI/RGB Fiber System Transmitter. The card is designed to transmit DVI/RGB video signals, including 2-channel 24-bit audio, over fiber optic cable. Through the use of fiber optics, video signals can traverse large distances. The ST-1RG-0 facilitates this through the use of Meridian’s line of fiber optics transmission systems.

Because it transmits signals in real-time, no video information is lost and is a perfect solution for dynamic video signals with crystal clear video and no color pixel skewing. Applications include courtrooms, medical and MRI displays, air traffic control, military information displays, stock exchanges, live event video displays, and video walls.

Digital transmission of DVI, RGBHV, RGsB over one multimode fiber.
2-channel 24-bit audio.
Supports VGA, SVGA, XGA, SXGA, and UXGA formats.
HDTV resolutions of 480p, 720p, and 1080i (RGB/DVI).
Horizontal and vertical sync frequency range of 30-130kHz and 60-150Hz.
Uses all-digital processing for crystal-clear signals and no color skewing.
Real-time video transmission for exceptional quality and resolution with no video compression
Requires no adjustments, equalization or de-skewing during setup.
Data throughput in excess of 6 Gbps uncompressed, where as most systems have 1.25Gbps throughput with significant compression.
Data display channel is optional.
Standard DVI-I video connector with dongle included for RGB interface.
USB interface for remote monitor adjustments.
Wide optical dynamic range eliminates the need for optical attenuators.
Multimode laser based system.
SpectraSmart network management compatible.
SKU: ST-1RG-0 Category: Tag:

Meridian Technologies ST-1RG-0 Specs

General
Inputs/Outputs Transmitter:
1 x DVI-IInput
1 x DE-15/DB-15 (RGB)Input
1 x USB-B 2.0Input
1 x Block (Audio)Input
Supported Resolutions 1600 x 1200
640 x 480
Maximum Transmission Distance 3280.8′ / 1 km
Transmission Method Multimode Cable
Video Channel 1-Channel
Audio Channels Supported 2-Channel Stereo (24-Bit)
Power
Power Consumption 7 W
Environmental
Operating Temperature 14 to 122°F / 10 to 50°C
Storage Temperature 67 to 185°F / 55 to 85°C
Physical
Status Monitoring LED Indicator
Dimensions 1.6 x 5.0 x 6.3″ / 4.0 x 12.7 x 16.0 cm
Weight 2.0 lb / 907.2 g
Packaging Info
Package Weight 1.5 lb
Box Dimensions (LxWxH) 10 x 7 x 3″
