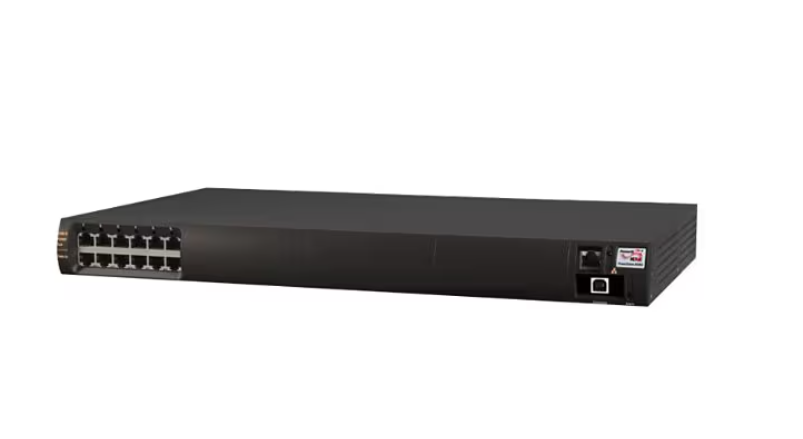

Microchip PD-9006G – PoE injector – 450 Watt

Add to Wishlist

Quick tech specs

  • mountable)
  • 450 Watt
  • output connectors: 6
  • United States
  • AC 100-240/ DC 46-57 V
  • Ethernet, USB
  • 1U



AED5,199.00

Add to Wishlist

Know your gear

The Microsemi PowerDsine PD-9006 Gigabit PoE Midspan Injector is designed specifically to power IEEE 802.11n and IEEE 802.3at access points, PTZ and dome cameras, IP video phones, thin clients and other high-power Ethernet end terminals. It is backward compatible and safe to use with various 802.3af terminal including VoIP phones, IP cameras and WLAN access points. This injector can be easily leveraged in an existing Ethernet infrastructure.

SKU: PD-9006G/ACDC/M-US Category: Tag:
Category Details
Overview
Brand Microchip
Product Line Microchip
Model PD-9006G
Manufacturer Powerdsine
Network & Communication
Compliant Standards IEEE 802.3af, IEEE 802.3at
Power Over Ethernet (PoE) PoE+
Remote Management Interface Ethernet, USB
Connectivity
Interface Provided 1 x management (Ethernet) – RJ-45, 1 x management (USB) – 4 pin USB Type B, 1 x VGA – 15 pin HD D-Sub (HD-15), 6 x Gigabit LAN – RJ-45
Power
Emergency Power Off LED indicators
Frequency 50 – 60 hertz
Output Connector Quantity 6
Power Output Connectors Details 6 x RJ-45
Power Provided 450 watt
Provided Voltage DC 55 volt
Required Voltage AC 100 – 240 / DC 46-57 volt
Software
Software Type PowerView Pro
Technical Information
Form Factor (Power Device) Rack-mountable
Max Operating Temperature 104 degrees Fahrenheit
Min Operating Temperature 32 degrees Fahrenheit
Operating Humidity 0 – 90% (non-condensing)
Product Information
Country United States
Features For indoor use
Packaged Quantity 1
Product Type PoE Injector
Subcategory Power converters, splitters and accessories
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 14.33 lbs
Width 17.2 inch
Depth 10.7 inch
Physical Characteristics
Color Category Black
Certifications & Listings
Compliant Standards C-Tick, cUL, EN 60950-1, EN55022 Class B, EN55024, FCC Part 15 B, GS, RoHS, UL, VCCI
