Microchip PD-9024G – PoE injector – 1000 Watt

Add to Wishlist

Quick tech specs

  • mountable)
  • 1000 Watt
  • output connectors: 24
  • United States
  • AC 100-240/ DC 55 V
  • Ethernet, USB
  • 1U

AED4,999.00

Add to Wishlist

Know your gear

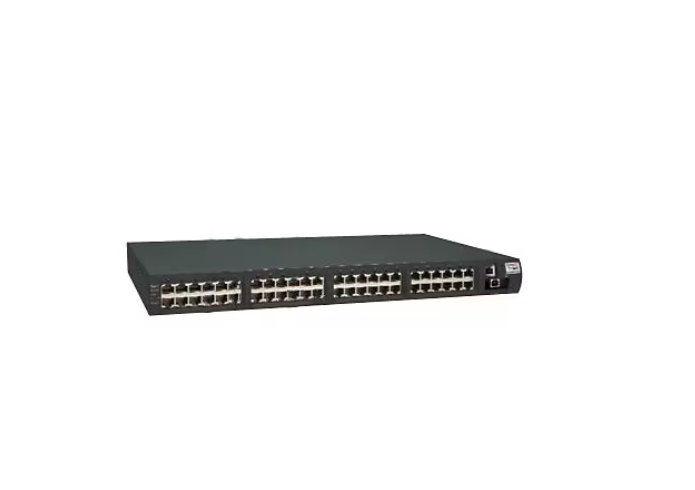

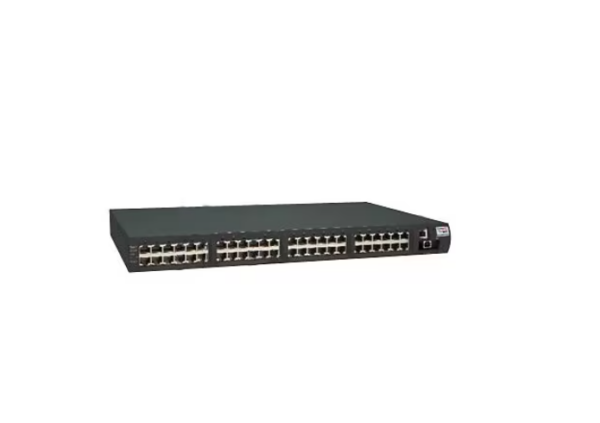

The Microsemi Powerdsine PD-9024G PoE Injector is designed for use with terminals such as IP videophones, thin clients and other high power Ethernet end terminals. It has 24 ports supplying 30 watts power per port and is rack-mountable for security and ease of use.

SKU: PD-9024G/ACDC/M-US Category: Tag:
Category Details
Overview
Brand Microchip
Product Line Microchip
Model PD-9024G
Manufacturer Powerdsine
Network & Communication
Compliant Standards IEEE 802.3af, IEEE 802.3at
Power Over Ethernet (PoE) PoE+
Remote Management SNMP 3
Remote Management Interface Ethernet, USB
Connectivity
Interface Provided 1 x management (USB) – 4 pin USB Type B, 1 x VGA – 15 pin HD D-Sub (HD-15), 24 x Gigabit LAN – RJ-45
Power
Emergency Power Off LED indicators
Frequency 50 – 60 Hz
Output Connector Quantity 24
Power Output Connectors 24 x RJ-45
Power Provided 1000 watt
Provided Voltage DC 55 volt
Required Voltage AC 100 – 240V / DC 55V
Software
Software Type PowerView Pro
Technical Information
Form Factor (Power Device) Rack-mountable
Max Operating Temperature 104°F
Min Operating Temperature 32°F
Operating Humidity 10 – 90% (non-condensing)
Product Information
Country United States
Packaged Quantity 1
Product Type PoE Injector
Subcategory Power converters, splitters and accessories
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1 U
Weight 14.33 lbs
Width 17.2 inch
Depth 10.7 inch
Physical Characteristics
Color Category Black
Certifications & Listings C-Tick, cUL, EN55022 Class B, EN55024, FCC Part 15 B, GS, IEC 60950-1, RoHS, UL, VCCI
