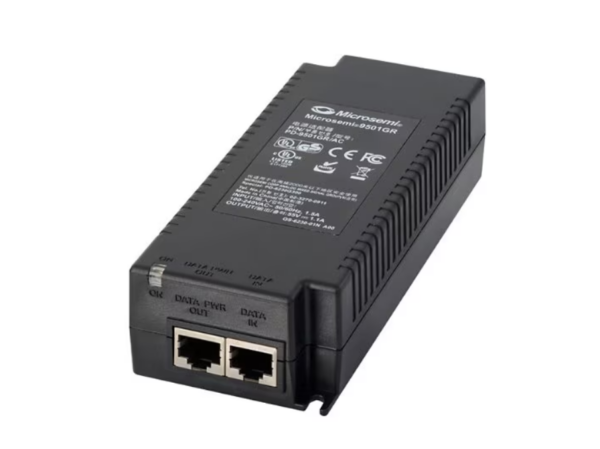

Microchip PD-9501GR – PoE injector – 60 Watt


Quick tech specs

  • 9501GR
  • AC 100-240 V
  • output connectors: 1
  • PoE injector
  • 60 Watt

1,599.00 د.إ

Know your gear

Microchip’s PD-9501GR is a single port solution for remote powering of current as well as emerging high power applications. The PD-9501GR is designed specifically to power IEEE 802.11n and IEEE 802.3at access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other high power Ethernet end terminals with 60W of power, and is also backward compatible and safe to use with any IEEE 802.3af terminal such as VoIP phones, IP cameras and wireless LAN access points. It can power both existing 10/100Base-T devices and emerging wireless Gigabit devices such as Wi-MAX and wireless IEEE 802.11n access points. The PD-9501GR provides power on all 4-pairs while being backwards compatible to 802.3af and 802.3at powered devices.
SKU: PD-9501GR/AC Category: Tag:
Category Attribute Details
Overview Brand Microchip
Product Line Microchip
Model PD-9501GR
Manufacturer Adaptec
Connectivity Interface Provided 1 x Gigabit LAN – RJ-45
Power Emergency Power Off LED indicators
Frequency 50 – 60 hertz
Output Connector Quantity 1
Output Connector Type RJ-45
Power Output Connectors Details 1 x RJ-45
Power Provided 60 watt
Provided Voltage 55 volt
Required Voltage AC 100-240 volt
Technical Information Form Factor (Power Device) External
Max Operating Temperature 104°F
Min Operating Temperature 14°F
MTBF (Mean Time Between Failures) 240,000 Hours
Operating Humidity 0 – 95% (non-condensing)
Product Information Packaged Quantity 1
Product Type PoE Injector
Subcategory Power converters, splitters, and accessories
Dimensions & Weight Height 1.5 inch
Weight 11.29 ounce
Width 2.4 inch
Depth 5.9 inch
Physical Characteristics Color Category Black
