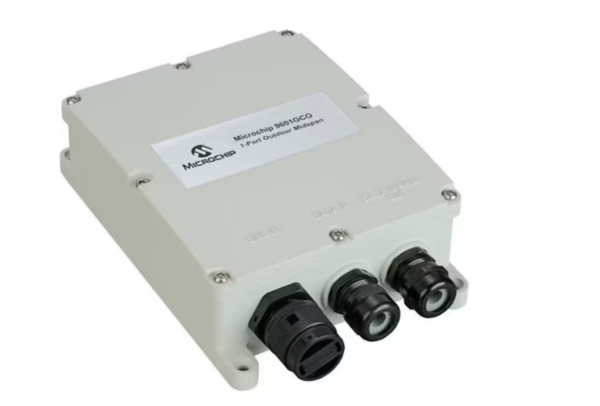

Microchip PD-9601GCO – PoE injector – IEEE 802.3bt Type 4, midspan, outdoor – 90 Watt


Quick tech specs

  • 9601GCO
  • IEEE 802.3bt Type 4, midspan, outdoor
  • 90 Watt
  • PoE injector
  • AC 100-240 V
  • output connectors: 1

1,499.00 د.إ

Know your gear

The single-port PoE midspan offers a cost-effective, IEEE 802.3bt Type 4 compliant solution for outdoor installations, ensuring 90 W of power and safe and reliable operation in outdoor environment of any standard PoE data terminal. It allows wireless LAN access points, security network cameras and other IP terminals to receive power, along with data, over standard Ethernet cables, leaving network infrastructure completely unaltered. The PD-9601GCO also offers surge protection for both the AC and the PoE ports ensuring the indoor equipment is protected from outdoor surges.
SKU: PD-9601GCO/AC Category: Tag:
Category Details
Overview
Brand Microchip
Product Line Microchip
Model PD-9601GCO
Manufacturer Powerdsine
Network & Communication
Compliant Standards IEEE 802.3bt Type 4
Power Over Ethernet (PoE) 4PPoE
Connectivity
Interface Provided 1 x Gigabit LAN – RJ-45
Power
Emergency Power Off Midspan
Frequency 50 – 60 hertz
Output Connector Quantity 1
Power Output Connectors Details 1 x RJ-45
Power Provided 90 watt
Provided Voltage DC 54 volt
Required Voltage AC 100-240 volt
Technical Information
Form Factor (Power Device) External
Max Operating Temperature 140 degree Fahrenheit
Min Operating Temperature -40 degree Fahrenheit
MTBF 187,000 Hours
Operating Humidity 90% (non-condensing)
Product Information
Features For outdoor use
Packaged Quantity 1
Product Type PoE Injector
Subcategory Power converters, splitters and accessories
Dimensions & Weight
Height 2.4 inch
Weight 3.09 lbs
Width 5.5 inch
Depth 6.7 inch
Physical Characteristics
Color Category White
Certifications & Listings
Compliant Standards ASTM B117, EN 55032 Class B, EN 55035, EN 60529, EN 62368-1, FCC-15 (Class B), GR-1089-CORE Issue 6, IP66, IP67, ITU-T K.21, NEMA250 Type 4X, VCCI, WEEE
