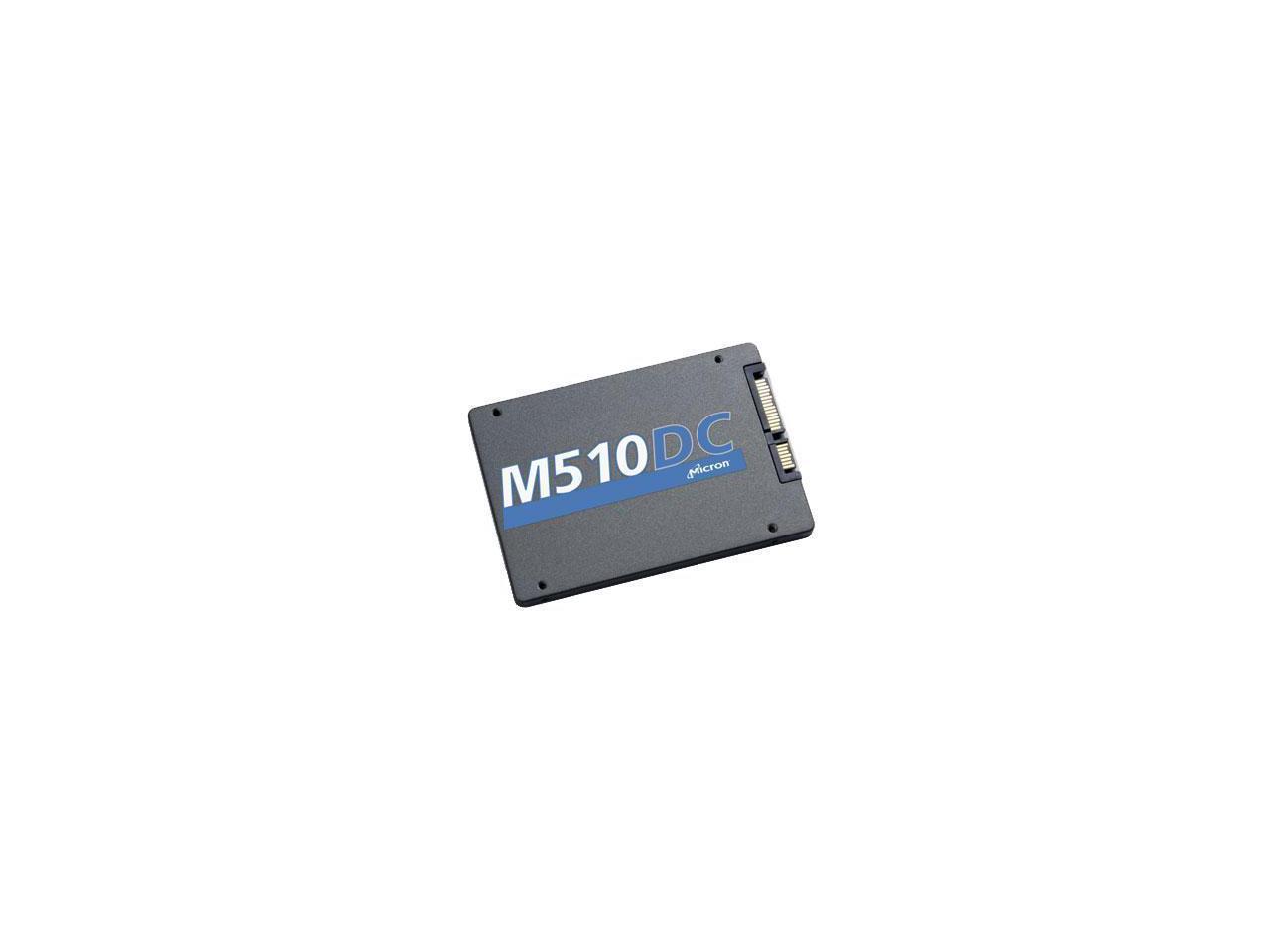

Micron M510DC MTFDDAK960MBP-1AN1ZABYY / 0CWDX 960GB 2.5in SFF SED SATA SSD

• 960GB performance (steady state) 1, 2 – Sequential 128KB read/write: 420/380 MB/s – Random 4KB read/write: 65,000/10,500 IOPS – READ/WRITE latency: 0.50/3.0ms (TYP)

• Micron® 16nm MLC NAND Flash
• SATA 6 Gb/s interface
• TCG Enterprise Ver 1.0 Final Rev 3.0 compliant selfencrypting drive (SED)
• ATA modes supported – PIO mode 3, 4 – Multiword DMA mode 0, 1, 2 – Ultra DMA mode 0, 1, 2, 3, 4, 5, 6
• 512-byte sector size support
• Hot-plug capable
• Native command queuing support with 32-command slot support
• ATA-8 ACS2 command set compliant
• ATA security feature command set and password login support
• Security erase command set: fast and secure erase
• Reliability – MTTF: 2.0 million device hours3 – Static and dynamic wear leveling – Uncorrectable bit error rate (UBER): <1 sector per 1016 bits read – End-to-end data protection – Enhanced power-loss data protection with data protection capacitor monitoring
• Self-monitoring, analysis, and reporting technology (SMART) command set
• Endurance: Total bytes written (TBW) – 120GB: 460TB; 240GB: 920TB; 480GB: 1850TB; 600GB: 3800TB; 800GB: 2500TB; 960GB: 1140TB
• Capacity4 (unformatted): 120GB, 240GB, 480GB, 600GB, 800GB, 960GB
• Mechanical: 7.0mm height – SATA connector: 5V ±10% – 2.5-inch drive: 100.45mm x 69.85mm x 7.0mm – Conforms to SFF standards
• RoHS-compliant package • Field-upgradeable firmware
• Power consumption: <6.0W (TYP); <6.3W (TYP) for 600GB/800GB/960GB
• Operating temperature – Commercial (0°C to 70°C)5

Notes: 1. Typical I/O performance numbers as measured
using Iometer with a queue depth of
32 and write cache disabled.
2. 4KB transfers used for READ/WRITE latency
values.
3. The product achieves a MTTF based on population
statistics not relevant to individual
units.
4. 1GB = 1 billion bytes; formatted capacity is
less.
5. Drive case temperature
