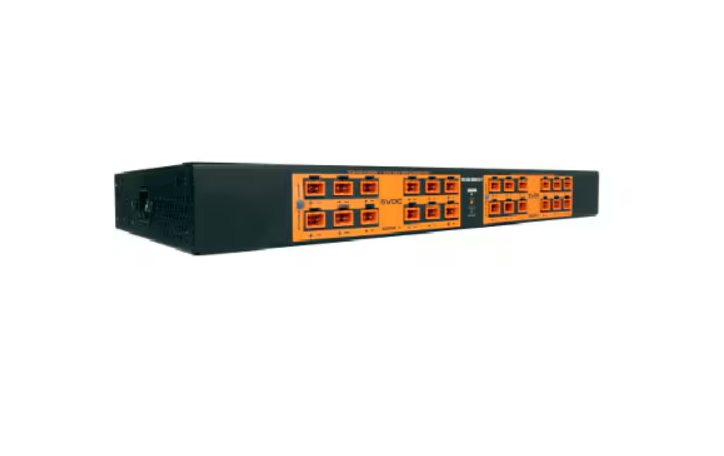

Middle Atlantic DC PDU 200W 5V Power Distribution Unit

Add to Wishlist

Quick tech specs

  • Power distribution unit
  • Power distribution
  • 6ft power cord
  • UL listed
  • PDU
  • Rack PDU
  • Overall dimensions: 7.3in depth x 1.75in height x 19in width

AED6,599.00

Add to Wishlist

Know your gear

Clean up your rack by replacing messy, space consuming wall warts and power strips with the Select Series DC Power Distribution unit designed for AV, security, and networking applications. The DC Power Distribution PDUs allow you to optimize installations that involve a multitude of devices in varying voltages. The PDUs provide high current capacity to an extensive number of outputs, maximizing the same voltage in a single unit or splitting between the most popular voltages. Additionally, with flexible mounting options, you can bring DC Power to a typical rack unit, small enclosure, or wall box. Plug it in, feel confident, and simply focus on creating an amazing AV experience. 5V, 40A Max (200W) Industry-leading number of outputs. Power as many as 24 devices. Basic surge protection and overload protection on the AC input. Individual redundancy built in with auto-resetting PTC overload protection on each individual output. The power distribution unit has ultimate mounting flexibility. The reversible, adjustable mounting ears support many mounting methods. You can even mount the unit to the back or the side of the rack! Color-coded screw terminal connectors with industry standard voltages and polarity labeling are included for easy identification.5 volts indicated by orange connectors.12 volts indicated by yellow connectors.24 volts indicated by red connectors.18 volts indicated by blue connectors. LED indicator lights show activity on each output and alert you to maximum capacity on each voltage bank. The ability to trim your power cords to a suitable length leaves less cable to manage, enhancing aesthetics and increasing airflow. The ultra-quiet, thermostatic temperature-controlled fan has automatic speed adjustment to keep your PDU from overheating.
SKU: PD-DC-200-5V Category: Tag:
Category Attribute Value
Overview Brand Middle Atlantic
Product Line Middle Atlantic PD series
Model PD-DC-200-5V
Manufacturer MiddleAtlantic
Connectivity Input Connectors 1
Power Emergency Power Off Auto-Resetting Technology, LED indicators, Metal Oxide Varistor Technology (MOV), Overload protection, Overvoltage protection, PTC protected power-limited outputs, Short-circuit protection, Temperature controlled fan
Frequency 50/60 hertz
Input Connector Type 1 x power IEC 60320 C14
Max Input Current 40 ampere
Output Connector Quantity 24
Output Connector Type Screw terminal
Power Output Connectors Details 12 x screw terminal – 12 V 20 A, 12 x screw terminal – 5 V 20 A
Power Provided 200 watt
Provided Voltage DC 5 volt
Required Voltage AC 120-240 volt
Surge Suppression Yes
Technical Information Form Factor (Power Device) Rack-mountable / external
Protection Type Circuit breaker
Product Information Cord Length 6 ft
Features Built-in cooling fan, Color-coded
Packaged Quantity 1
Product Type Power distribution unit
Rack Mounting Kit Included
Subcategory Power distribution devices
Included Items Cables Power cable – external – 6 ft
Included Accessories 12 mounting screws, 4 mounting brackets
Dimensions & Weight Height 1.7 inch
Height (Rack Units) 1
Width 16.1 inch
Depth 7.2 inch
Physical Characteristics Color Category Black, Orange
