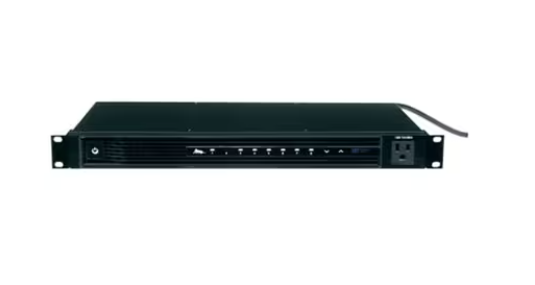

Middle Atlantic Premium Plus 9-Outlet Rack Mounted Power Distribution Unit w/ RackLink – Surge Protection

Add to Wishlist

Quick tech specs

  • Power distribution unit
  • Rack PDU
  • Series surge protection
  • Black
  • Rackmount power distribution
  • 9 outlet with RackLink- 20 amp rack mounted power
  • Overall dimensions: 9.8in depth x 1.75in height x 19in width

AED12,699.00

Add to Wishlist

Know your gear

The Middle Atlantic RLNK-P920R-SP isn’t just a power distribution unit; it’s a pinnacle of innovation in remote system management. Designed for demanding AV applications, this Premium+ PDU with RackLink sets a new standard for simplicity and sophistication in IP control solutions. Built upon a proven platform utilized in the most secure networks globally, this next-generation PDU offers unparalleled monitoring, control, logging, security, and power protection capabilities. With RackLink technology at its core, it empowers users to exert control locally or virtually through a variety of avenues, including 3rd party AV control systems, cloud platforms, and SNMP. This flexibility ensures smarter, faster management while reducing service costs. Featuring 8 outlets in the back and an additional convenience outlet in the front, this PDU delivers 20 Amps of power with Series Surge Protection, safeguarding your equipment from electrical anomalies. Integrated scheduling, variable timed sequencing, ping sequencing, auto-healing, thresholds, and multiple notification options streamline programming, saving time and effort. Compatibility is a cornerstone of its design, enabling seamless integration with control and IT systems through custom drivers, SNMP v3/MIB, JSON-RPC, and 3rd party integrations. Adding to its versatility, it can connect via Wi-Fi with a 3rd party dongle, ensuring easy access regardless of infrastructure constraints. Firmware updates can be performed remotely without downtime, guaranteeing system uptime and continuity. Moreover, its superior metering accuracy provides detailed insights into power consumption down to the outlet level, encompassing current, voltage, power, power factor, and energy usage. To monitor environmental conditions, multiple sensors can be connected to track temperature and humidity levels, alerting users to potential threats that could disrupt operations. Robust network security features, including SSL/TLS Certificates, SSH, HTTPS, and support for self-signed certificates, ensure data integrity and confidentiality. Developed in partnership with Raritan, a leader in intelligent power solutions, leveraging their Xerus platform, this PDU adheres to industry standards such as AVIXA Energy Management Standard, supporting energy-efficient AV system design, monitoring, and optimization. With the Middle Atlantic RLNK-P920R-SP, you’re not just getting a power distribution unit; you’re investing in a comprehensive solution engineered to meet the evolving needs of modern AV environments.
SKU: RLNK-P920R-SP Category: Tag:
Category Specification
Overview
Brand Middle Atlantic
Product Line Middle Atlantic Premium+ Rack Mount PDU with RackLink
Model RLNK-P920R-SP
Manufacturer MiddleAtlantic
Network & Communication
Remote Management HTTP, HTTPS, NTP, SMTP
Remote Management Interface Ethernet 10/100, RS-232, USB
Connectivity
Input Connectors 1
Interface Provided – 1 x console – RJ-45 – 1 x expansion – RJ-45 – 1 x feature – RJ-45 – 1 x management (Fast Ethernet) – RJ-45 – 1 x management (Gigabit Ethernet) – RJ-45 – 1 x management (USB) – 4 pin USB Type B – 1 x sensor – RJ-45 – 2 x USB – 4 pin USB Type A
Power
Emergency Power Off 8 individually controllable outlets, Data-logging, Email alerts support, Horizontal orientation, LCD display, Outlet metering, Remote outlet switching
Frequency 50–60 Hz
Input Connector Type Power IEC 60320 C20
Input Voltage Range AC 80–140 V
Max Input Current 20 A
Max Spike Voltage 330 V
Output Connector Quantity 9
Output Connector Type Power NEMA 5-20R
Power Output Connectors 9 x power NEMA 5-20R
Required Voltage AC 120 V
Surge Suppression Yes
Software
Software Type Racklink Discovery Tool
Technical Information
Form Factor (Power Device) Rack-mountable
Protection Type Circuit breaker
Product Information
Cord Length 9 ft
Features Integrated web server, Powder-coated
Packaged Quantity 1
Product Type Power distribution unit
Subcategory Power distribution devices
Included Items
Cables Power cable – 9 ft
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1 U
Weight 13.21 lbs
Width 19 inch
Depth 9.8 inch
Physical Characteristics
Color Black
Color Category Black
