MikroTik Cloud Core Router CCR2004-16G-2S+ – router – rack-mountable


Tech overview

MikroTik Cloud Core Router CCR2004-16G-2S+ – Router – 10 GigE – rack-mountable

2,099.00 د.إ

Like the other models in CCR2004 series, this CCR also features the Annapurna Labs Alpine v2 CPU with 4x 64-bit ARMv8-A Cortex-A57 cores running at 1,7GHz. But here’s the difference. This powerful router crushes all previous CCR models in single-core performance, and that is the most important aspect when it comes to heavy operations based on per-connection processing. Like queues, for example. But that’s not all! It also has the best single-core performance per watt and best overall performance per watt among all the CCR devices. Better for the planet, better for the bills, it’s a win-win!

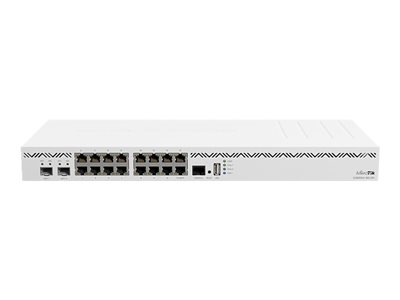

The router has 18 wired ports, including 16x Gigabit Ethernet ports and two 10G SFP+ cages. It also has a full-size USB and RJ-45 console port on the front panel. Like all CCR devices, it comes in a classic white 1U rackmount case. Built-in dual redundant power supplies are included, so you have one less thing to worry about. And, of course, there is active cooling to keep things nice and cool. Each group of 8 Gigabit Ethernet ports is connected to a separate Marvell Amethyst family switch-chip. Each switch chip has a 10 Gbps full-duplex line connected to the CPU. The same goes for each SFP+ cage – a separate 10 Gbps full-duplex line.

SKU: CCR2004-16G-2S+ Category: Tag:
Specifications
General
Device Type Router
Enclosure Type Rack-mountable
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Compliant Standards RoHS, IP20, EAC
Processor 1 x Annapurna Labs AL32400 1.7 GHz
RAM 4 GB
Flash Memory 128 MB
Expansion / Connectivity
Interfaces 16 x 10Base-T/100Base-TX/1000Base-T – SFP+, 2 x 10Gb Ethernet – SFP+, USB 3.0: 1 x, Console: 1 x RJ-45
Power
Power Device Internal power supply
Power Redundancy Yes
Installed Qty 2 (installed) / 2 (max)
Voltage Required AC 100-240 V (50/60 Hz)
Power Consumption Operational 48 Watt
Miscellaneous
Included Accessories K-57 fastening set
Rack Mounting Kit Included
Software / System Requirements
OS Provided MikroTik RouterOS (licence level 7)
Environmental Parameters
Min Operating Temperature -4 °F
Max Operating Temperature 140 °F
